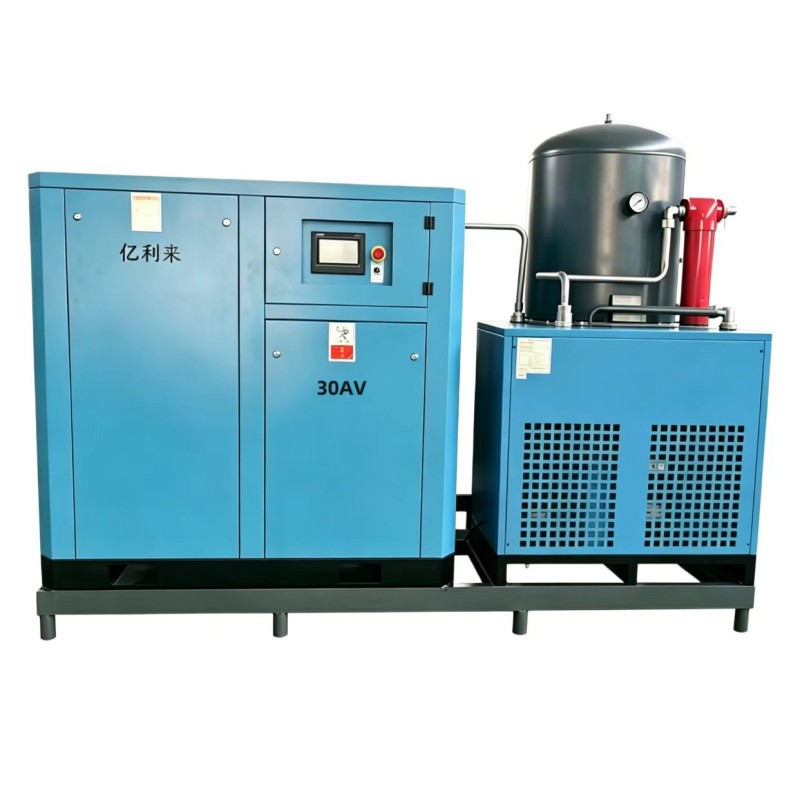

China Skid Mounted Low Pressure Fixed Speed Single Stage Air Compressor Supplier

Industrial compressed air systems demand reliable, efficient, and easy-to-install solutions. The Skid Mounted Low Pressure Fixed Speed Single Stage Air Compressor represents a highly practical choice for operations that require consistent low-pressure air output without the complexity of variable speed drives or multi-stage compression. Built onto a rugged steel skid, this unit can be quickly transported, positioned, and connected to existing plant utilities. The fixed speed design ensures straightforward operation and reduced electronics complexity, making it a favorite for maintenance teams who value uptime and trouble-free service.

Elily has engineered this compressor line to meet the real-world demands of manufacturing floors, pneumatic conveying, wastewater aeration, and other low-pressure applications. Each machine balances airflow capacity, pressure stability, and energy consumption in a single-stage compression cycle. The single stage design means fewer moving parts compared to two-stage compressors, directly translating into lower wear and simplified service intervals. The low pressure output range typically sits between 1.5 bar and 4 bar (22 psi to 58 psi), perfectly suited for processes where high-pressure air is unnecessary or even detrimental.

FAQ

Is the Elily Skid Mounted Low Pressure Fixed Speed Single Stage Air Compressor suitable for outdoor installation?

Yes, with the optional weatherproof canopy kit the compressor can be installed outdoors in ambient temperatures from -25°C to +45°C. The canopy features sealed doors, corrosion-resistant hardware, and a sound-attenuating enclosure that also protects against rain, snow, and dust. The controller and electrical components are housed in an IP65 rated enclosure within the canopy. For extremely cold environments, we recommend an optional sump heater and a low ambient kit that maintains the lubricant at a viscosity suitable for cold starts.

What air quality can be achieved with the Elily compressor, and how do I know if I need extra treatment?

Standard configuration delivers compressed air with oil content typically below 3 ppm and particulate filtration down to 1 micron. If your application requires cleaner air, we offer an integrated refrigerated dryer and coalescing filters that bring oil aerosol down to 0.01 ppm and solid particles down to 0.01 micron, meeting ISO 8573-1 Class 1. For oil-free demands, we specify alternative oil-free screw or scroll compressors, but for many low-pressure processes, the lubricated design with proper filtration is both economical and fully compliant.

How should I size a Skid Mounted Low Pressure Fixed Speed Single Stage Air Compressor for my facility?

Sizing begins with a detailed audit of your current and future air usage. You need to know the required pressure, average flow rate, and the demand profile (peak vs. continuous). Elily application engineers use data loggers to measure your actual system parameters over a typical production week. Based on these measurements, we recommend the model that runs between 60% and 85% load during normal conditions, which is the sweet spot for fixed speed efficiency. We also account for altitude, ambient temperature, and piping losses in the final selection.

What maintenance intervals should I expect, and how do I know when service is due?

The Elily Logic Controller tracks running hours and displays a maintenance countdown. Standard oil and filter changes are recommended every 2000 to 4000 operating hours, depending on ambient conditions and lubricant type. Air filter cleaning or replacement may be indicated more frequently in dusty environments. Separator cartridges, drive belts, and safety valves have specified replacement intervals that our service team reviews during each visit. Elily provides a clear maintenance schedule document with every machine, and our genuine lubricant analysis program helps you safely extend oil change intervals based on actual oil condition.

Why Elily for Your Low Pressure Air Needs

Elily brings decades of compressed air expertise into every skid mounted package. From the initial site audit to custom engineering, factory testing, and commissioning, we apply rigorous quality control standards. Our supply chain uses globally sourced, proven components that ensure long-term reliability. The single stage low pressure compressor is backed by localized service teams who understand the urgency of minimizing downtime in critical processes.

We continuously invest in innovation to make our compressors more efficient and easier to service. Features like central oil drain points, spin-on oil filters, and hinged door panels are standard across the Elily range. Each compressor is built to order, allowing us to incorporate specific options you require without compromise. The skid mounted configuration means we can also integrate dryers, filters, and receivers into a single lift, reducing total installed cost and project complexity.
