China Tank Mounted Fixed Speed Single Stage Air Compressor Factory

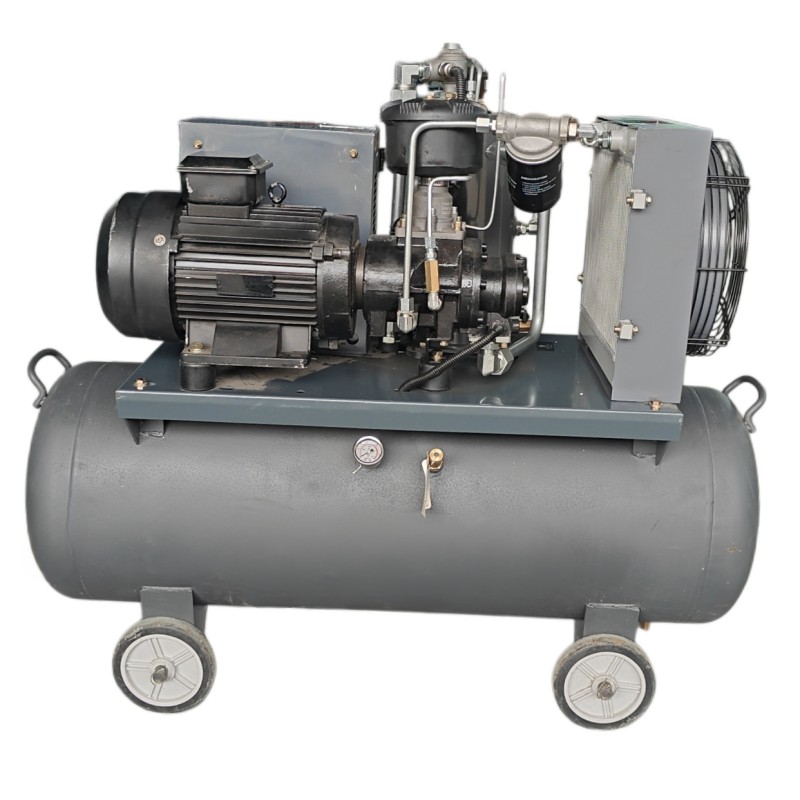

Industrial and commercial operations demand reliable compressed air solutions that deliver consistent performance without excessive complexity. The Tank Mounted Fixed Speed Single Stage Air Compressor stands as a workhorse in workshops, manufacturing facilities, and service centers around the world. Elily has engineered this category to meet the rigorous expectations of professionals who need dependable air delivery for tools, machinery, and processes. By integrating the compressor pump, motor, and storage tank into one cohesive unit, this design simplifies installation, reduces footprint, and ensures that air is always available on demand. Whether you are running impact wrenches, spray guns, or pneumatic controls, a tank mounted fixed speed single stage air compressor from Elily provides the steady air pressure required to keep operations moving smoothly.

FAQ

What is a tank mounted fixed speed single stage air compressor and how does it work?

A tank mounted fixed speed single stage air compressor is a complete compressed air system where the compressor pump, electric motor, and air receiver tank are assembled on a common platform. The single stage design compresses air from atmospheric pressure to its final pressure in one stroke of the piston. The fixed speed motor runs at a constant RPM, typically 1750 or 3450 RPM, depending on the model. When the pressure switch senses that the tank pressure has dropped to the cut-in setting, the motor starts and drives the pump via belt or direct coupling. Air is drawn in, compressed, and directed into the tank until the pressure reaches the cut-out point. At that moment, the motor shuts off automatically. The stored air in the receiver is available for tools and processes, smoothing out delivery and reducing motor cycling.

What maintenance does the tank require?

The air receiver tank must be drained of condensate at least daily to prevent internal rust. Moisture accumulation inside a steel tank can quickly cause pitting and weaken the pressure vessel over time. A manual drain valve is standard on all Elily models; we recommend upgrading to an automatic timed drain for busy shops. Annually, the tank should be inspected for internal corrosion using a light or borescope. Check the tank data plate to ensure it is within its certification period. Tanks typically require a hydrostatic test every five to ten years depending on local regulations. Never weld on or modify a compressed air receiver. If a tank shows signs of severe rust or leaks, it must be removed from service immediately.

Are these compressors suitable for pharmaceutical or food packaging applications?

Standard tank mounted fixed speed single stage air compressors produce compressed air that contains trace amounts of oil vapor and moisture, which is generally acceptable for industrial tools and general automation. For pharmaceutical or food contact applications, the compressed air must meet strict purity standards such as ISO 8573-1 Class 0 or Class 1. While you can add downstream filtration, dryers, and oil removal systems to a lubricated compressor, the most common approach is to use an oilless compressor optimized for clean air. Elily can advise on proper treatment packages if you need to use a lubricated machine with high purity air; however, dedicated oil free technology is often more cost effective for critical contamination control.

How do I reduce noise from my fixed speed compressor?

Noise levels from reciprocating compressors originate from the pump intake, mechanical impacts, and the electric motor. Elily incorporates intake silencers and vibration isolation as standard. To further reduce noise, consider installing the compressor in a separate equipment room or a sound dampening enclosure. Adding a flexible intake duct to draw air from outside the building can lower perceived noise in the workspace. Rubber pads under the tank feet absorb vibration transmitted to the floor. If lower noise is essential, the installation of an aftermarket intake filter silencer can shave several decibels. Always maintain the compressor properly; worn valves and loose belts generate additional clatter.

What electrical preparations are needed for a 7.5 HP three phase model?

A 7.5 HP three phase motor typically draws around 20 to 22 amps at 230V and 10 to 11 amps at 460V. You will need a dedicated circuit with a breaker rated at 125 percent of the full load amperes listed on the motor nameplate. The wire gauge must be sized according to the ampacity and distance from the panel. For 230V three phase, a 30 amp breaker with 10 AWG wire is common for short runs. Longer runs may require 8 AWG to prevent voltage drop. A fused disconnect or motor starter with overload protection should be mounted near the compressor. Coordinate phase rotation during startup; a reversed pump direction can damage the compressor. Elily ships three phase units with a phase rotation indicator label and instructions for correction.

Why Choose Elily

Elily brings decades of compressed air engineering experience to every product. The company’s tank mounted fixed speed single stage air compressors are built in factories that follow strict quality management processes. From the initial casting of cylinder heads to the final performance test, each stage is monitored to ensure consistency. Spare parts are kept in stock regionally, and the Elily technical support team understands the pressures of production environments. When you purchase an Elily compressor, you gain access to preventative maintenance plans, extended warranty options, and a network of service partners. This ecosystem reduces unplanned downtime and keeps your pneumatic operations running at full capacity.

The design philosophy at Elily emphasizes real world usability. The control panel layout groups pressure gauge, regulator, and quick disconnect fittings in an ergonomic position. Drain valves are placed where operators can reach them without bending behind equipment. Belt guards meet all safety standards without compromising cooling airflow. Even the fasteners are selected for corrosion resistance, recognizing that many compressors operate in unconditioned spaces. These details reflect a deep appreciation for the end user’s daily experience, which only comes from years in the industry.
