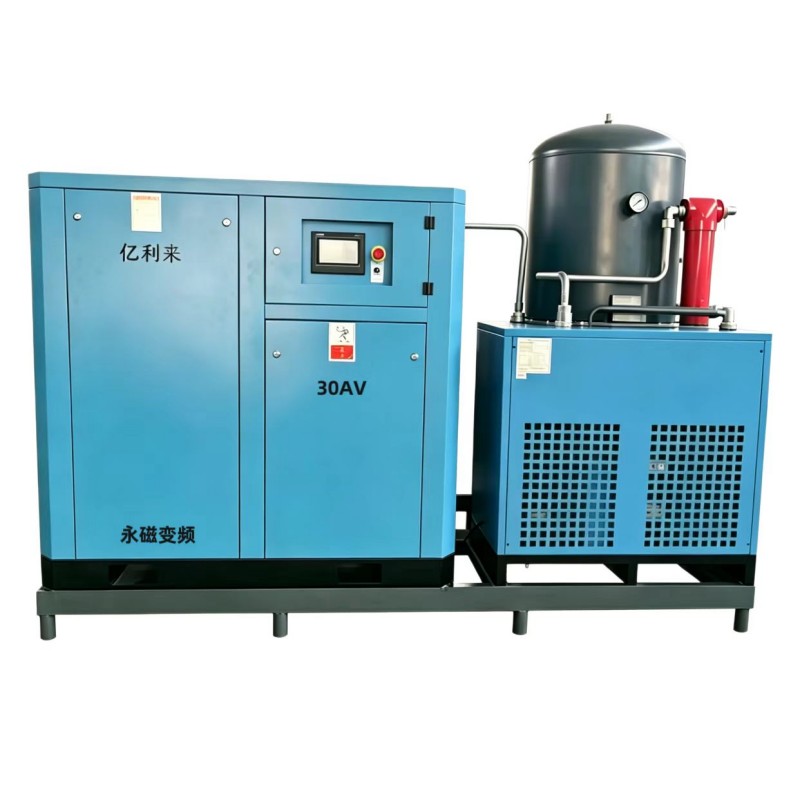

China Skid Mounted Low Pressure VSD Single Stage Air Compressor Manufacturer

Modern industrial operations demand compressed air solutions that balance energy efficiency, mobility, and unwavering reliability. The Skid Mounted Low Pressure VSD Single Stage Air Compressor addresses these needs by integrating variable speed drive technology with a rugged skid-mounted framework. Designed specifically for low-pressure applications where consistent airflow below 3.5 bar is critical, this unit eliminates wasteful pressure overshoot and trims lifecycle costs substantially. Whether deployed in pneumatic conveying, wastewater aeration, or bulk material handling, the configuration provides plug-and-play simplicity without sacrificing performance. Elily has spent years refining this compressor series to meet the exacting standards of industries that cannot afford downtime. Every component from the airend to the controller is selected for durability and ease of maintenance, making the skid-mounted unit a cornerstone of efficient plant operations.

Why Low Pressure and Variable Speed Matter

Fixed-speed compressors often operate at full output even when demand fluctuates, wasting energy through constant blowdowns and start-stop cycles. By incorporating a variable speed drive, Elily's low-pressure compressor adjusts motor speed in real time to match precisely the air demand. At low pressure—typically between 1.5 and 3.5 barg—the machine avoids the compression work that would later be throttled or relieved. Energy savings can reach 30% or more compared to conventional fixed-speed packages. The single-stage compression element further reduces mechanical complexity and heat buildup, ensuring air output temperatures remain manageable without oversized aftercoolers. This combination makes the Skid Mounted Low Pressure VSD Single Stage Air Compressor exceptionally suited for continuous duty where energy costs form a large portion of total ownership expense.

Frequently Asked Questions

What is the main advantage of a low-pressure VSD compressor compared to a standard 7-bar unit with a pressure reducer?
Using a standard high-pressure compressor and then reducing the pressure wastes energy because the compressor expends power to reach a higher pressure needlessly. A Skid Mounted Low Pressure VSD Single Stage Air Compressor is designed to operate at the exact required pressure, often less than 3.5 bar, eliminating the extra work and the throttling losses. The result is a much lower specific power and reduced heat buildup, which extends the life of lubricants and components. Additionally, the single-stage compression element avoids the complexity and energy consumption of a two-stage machine.

Can the Elily Skid Mounted Low Pressure VSD Single Stage Air Compressor operate in dusty or outdoor conditions?
Yes, the skid design is inherently robust for harsh environments. The air intake is equipped with a heavy-duty dry filter, and the enclosure is designed to prevent direct rain ingress. For extreme dust, optional cyclone pre-filters are available. The IP55 motor and sealed electrical cabinets protect internal components. With the optional water-cooled configuration and cold-weather package, the unit can operate reliably from -20°C to +50°C. Elily skids are frequently installed outdoors on concrete pads with a simple protective roof.

Is it possible to combine multiple low-pressure compressors on a single skid?
Yes, Elily offers multi-compressor skid systems where two or three low-pressure VSD units are mounted on a common extended skid with integrated sequencing controls and a shared dryer. This configuration provides inherent redundancy and allows a wider turndown ratio for processes with highly variable air demand. Flow can range from a few cubic meters per minute up to 40 m³/min or more within the same footprint. The master controller automatically stages the units for optimal efficiency.

How long can the compressor run at low pressure without issues?
Elily’s Skid Mounted Low Pressure VSD Single Stage Air Compressor is rated for 100% continuous duty. The motor and airend are thermally rated for non-stop operation, and the oversized cooler handles maximum ambient conditions indefinitely. Many units in the field achieve 20,000+ running hours without major repairs when maintained per schedule. The absence of high-pressure stress on bearings and seals further contributes to long service life in low-pressure service.

Does Elily provide remote monitoring and support?
Absolutely. The Smart-Controller can connect to a local network or cellular gateway, sending operational data to the Elily cloud platform. Authorized personnel can view real-time pressures, temperatures, energy consumption, and service alerts from any web-enabled device. Remote diagnostics enable Elily’s technical team to assist with troubleshooting quickly, often resolving issues without an on-site visit. This connectivity also supports predictive maintenance by analyzing trends before a failure occurs.
