45kW 8 Bar Skid Mounted VSD Single Stage Air Compressor

The Elily 45kW 8 Bar Skid Mounted VSD Single Stage Air Compressor is designed specifically for standard industrial pressure (0.8MPa) air supply scenarios. Integrating high efficiency, stability, and intelligence, it is a reliable air source solution to help enterprises reduce costs and increase efficiency.

High Efficiency and Energy Saving: Equipped with a Class 1 energy-efficient permanent magnet synchronous motor, it achieves energy savings of 8%-12% compared to traditional motors. Combined with intelligent variable frequency control technology, it can accurately match air demand, eliminating unnecessary unloading energy consumption, resulting in a comprehensive energy saving rate of 30%-50%.

Stable and Reliable: Utilizing coaxial direct drive, it avoids wear and tear on components such as belts or couplings. Core components, such as the main unit bearings, are selected from high-end brands like SKF, ensuring the main unit operates without vibration and with low noise, boasting a design life of up to 60,000 hours.

Intelligent Control: Equipped with a 7-inch touchscreen intelligent control system, it integrates automatic adjustment, remote data monitoring, and fault early warning functions. Its constant pressure control accuracy reaches ±0.1bar, ensuring stable operation of air-using equipment.

Convenient Maintenance: The integrated skid-mounted design features a compact and rational layout. Compared to traditional models, it has fewer vulnerable parts, lower maintenance costs, and significantly saves repair time and workload.
Quiet and Environmentally Friendly: Utilizing a quiet design and a high-efficiency filtration system, the overall operating noise is as low as 65dB, effectively improving the production environment and meeting environmental protection requirements.
Flexible Configuration: It can stably output a standard industrial pressure of 8 kg (0.8MPa), with a discharge volume ranging from approximately 7 to 10 m³/min, meeting the production needs of most general manufacturing, machinery, and electronics
industries.

Product parameters:

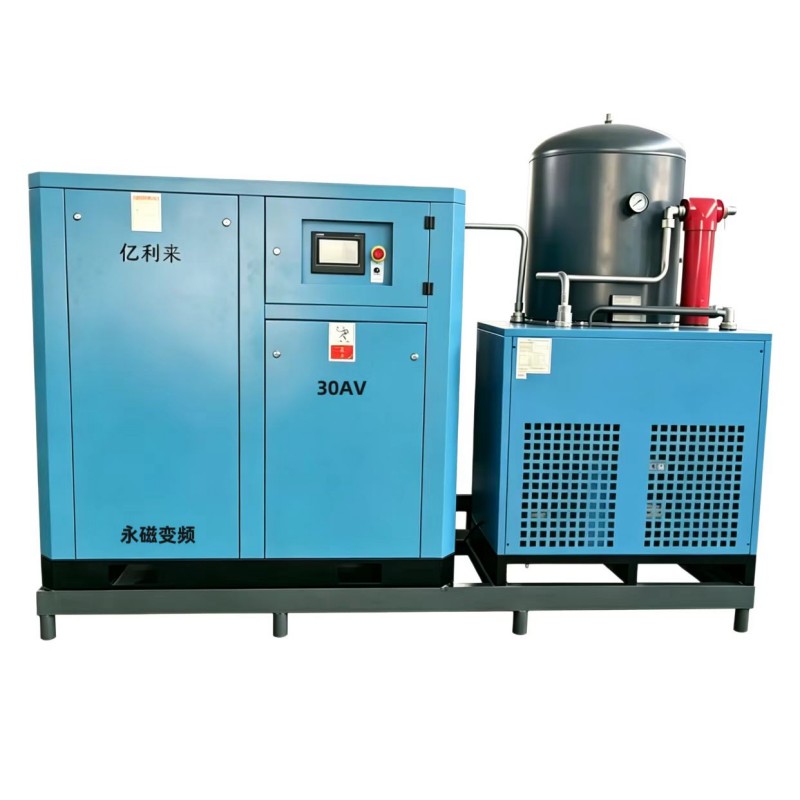

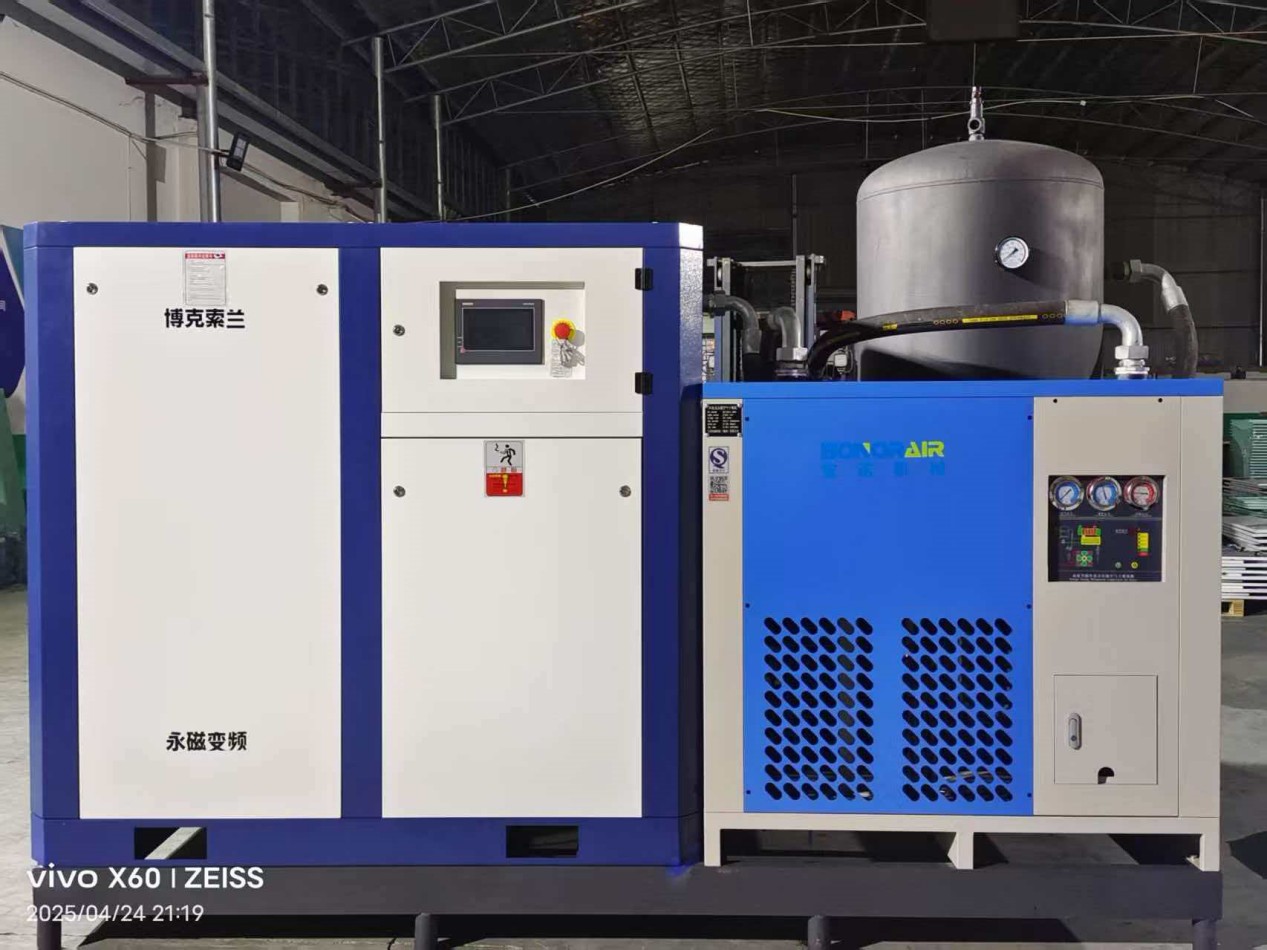

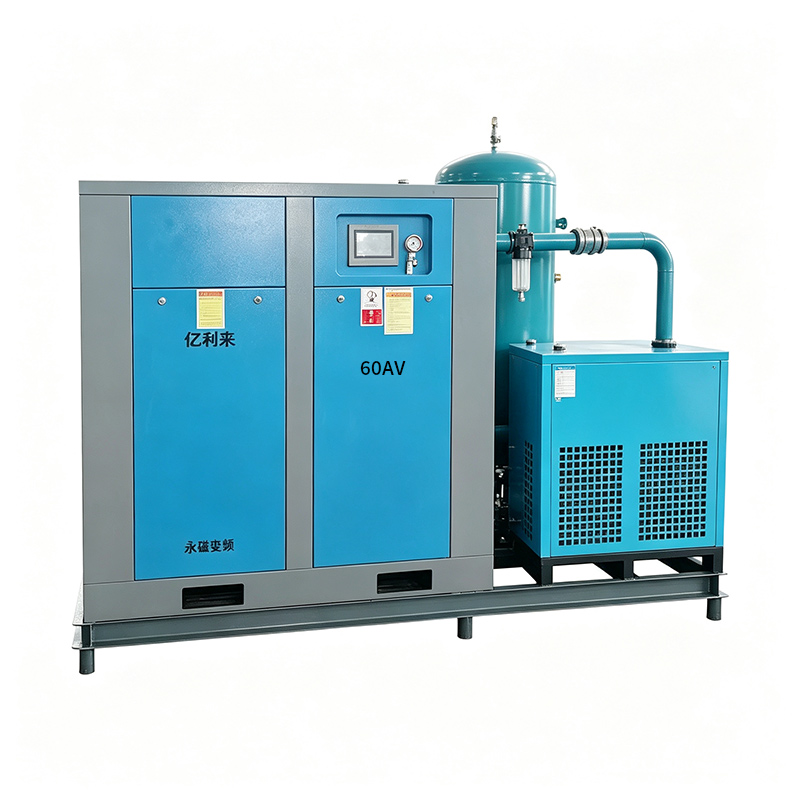

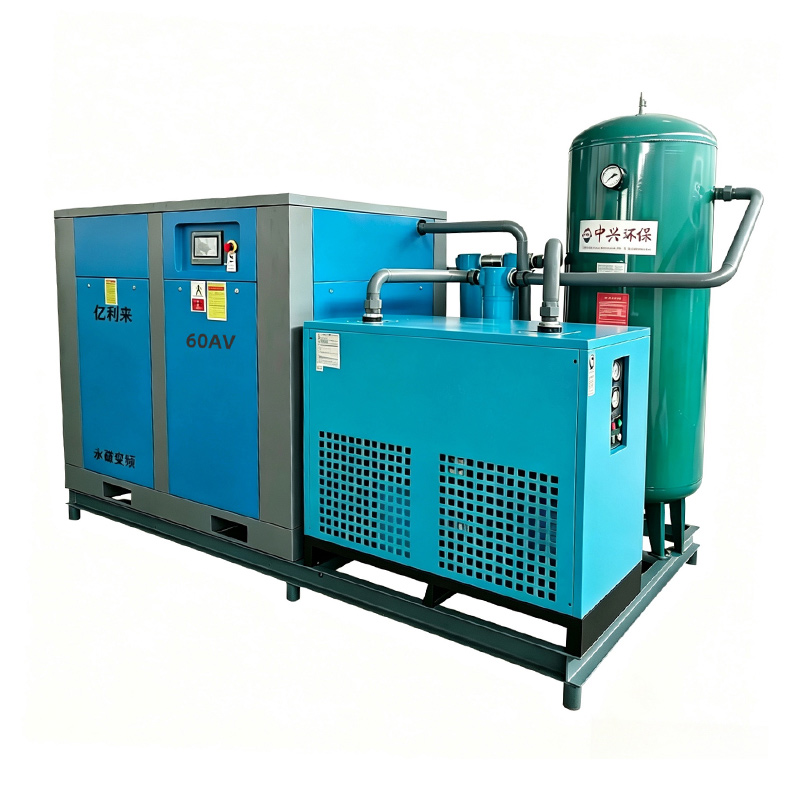

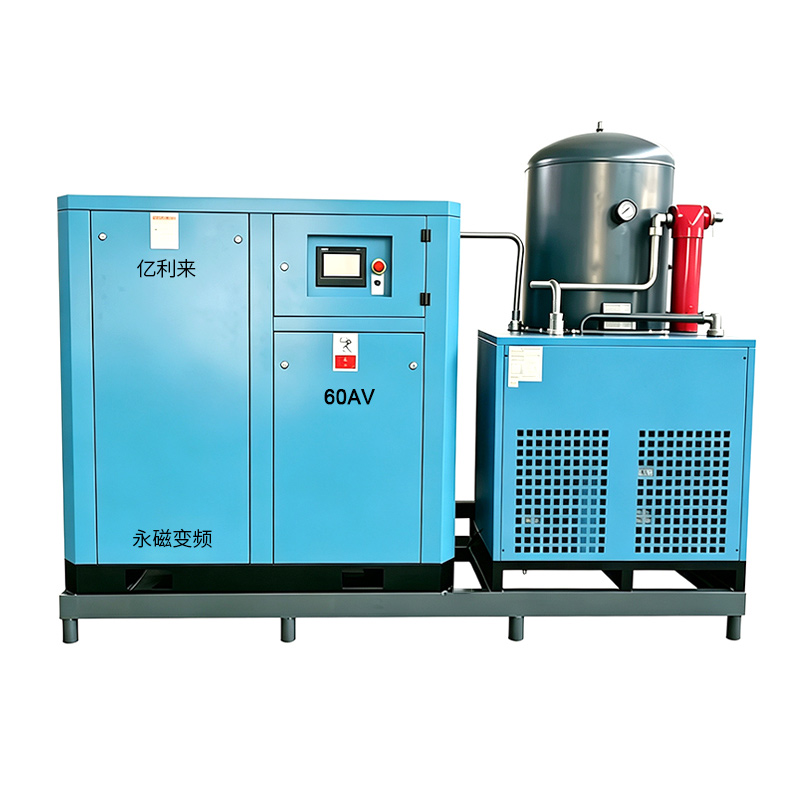

Product photos

Applications:

The 45kW 8 Bar Skid Mounted VSD Single Stage Air Compressor is widely applicable to the following scenarios:
Machine shops: Provide stable compressed air for CNC machine tools, machining centers, pneumatic fixtures, etc.
Spray painting production lines: The 8kg standard pressure meets the air requirements of automatic spray guns and painting equipment.
Packaging and food and beverage: Drive pneumatic packaging machines, sealing machines, and filling equipment.
Automotive repair and 4S shops: Centralized air supply systems power lifts, air cannons, and painting equipment.
Electronics and pharmaceutical manufacturing: Cleanrooms with high requirements for air source stability.
Plastics and rubber industry: Pneumatic injection molding machine auxiliary equipment, blow molding machine pre-blowing, and rubber vulcanizing machines.
Woodworking and furniture manufacturing: Pneumatic nail guns, sanding equipment, and dust removal systems.

company strength

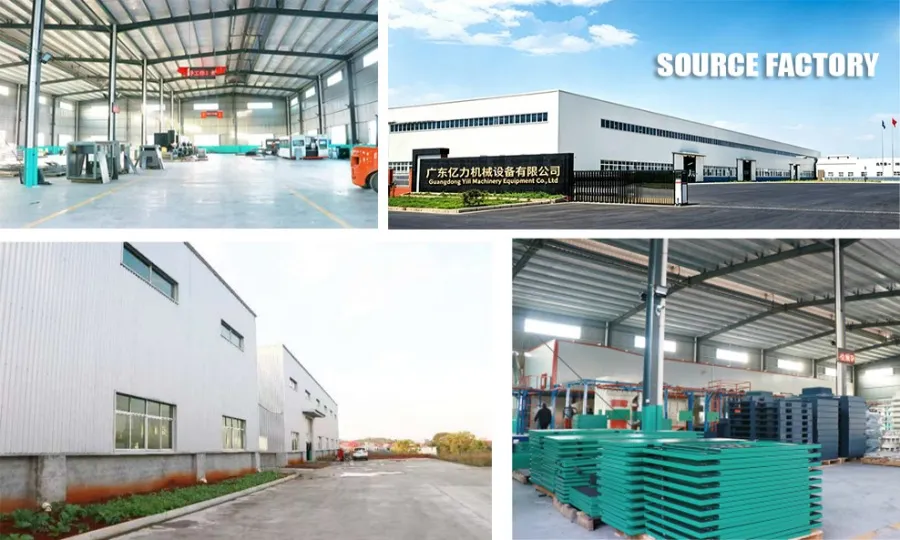

Elily is a high-tech enterprise integrating R&D, manufacturing, and sales, specializing in compressed air purification and gas separation. The company boasts a modern production base covering 20,000 square meters, including 8,000 square meters of factory buildings, equipped with advanced processing equipment and standardized assembly lines.

We have a technical team of over 20 senior engineers, with core members possessing more than 10 years of industry experience. The company is ISO9001 quality system certified, and its core products have obtained CE certification. We implement full-process quality control from raw material intake to finished product delivery, ensuring the stability and reliability of every piece of equipment.

Our annual production capacity exceeds 2,000 units, with standard models delivered within 15-20 days. Our products are exported to more than 30 countries and regions in Southeast Asia, the Middle East, Europe, and America. We adhere to the principle of "direct supply from our Chinese factory and support OEM customization," providing high-performance, cost-effective gas solutions to global customers with superior quality and rapid response capabilities.

Flexible Extended Warranty Services:

In addition to the standard warranty, you can choose a 1-year or 2-year extended warranty package to extend the warranty period for core components. There is also an annual preventative maintenance package, including quarterly equipment inspections, filter replacements, purity testing, system upgrades, and operation reports to ensure your equipment is always in optimal condition. For corporate clients, we also offer bundled maintenance solutions for multiple devices to reduce overall operating costs. Giving you peace of mind, confidence, and security.

FAQ：

1. What scale of pneumatic operation is suitable for a 45KW power unit?
45kW 8 Bar Skid Mounted VSD Single Stage Air Compressor has an exhaust volume of 7.5-8.2 m³/min, suitable for centralized air supply in medium-sized workshops. It can simultaneously power 10-15 pneumatic devices or 1-2 medium-sized spray painting lines.
2. Does the skid-mounted unit require a foundation?

No. Only a level, hardened ground is needed. The unit comes with built-in shock-absorbing pads; it can be used immediately after a forklift or crane is in place.

3. What equipment can 8 kg pressure meet?
0.8 MPa is a standard industrial pressure, sufficient for most pneumatic tools, cylinders, spray guns, purging, packaging, and spraying equipment.

4. Can this 45KW unit operate continuously for 24 hours?
Yes. The entire unit is designed for industrial-grade continuous operation, with ample air cooling, supporting 24/7/365 uninterrupted operation.

5. Are an additional air tank and dryer required?
The choice depends on the required cleanliness of the gas source. This machine is skid-mounted (excluding the gas tank and refrigerated dryer). It is recommended to configure a gas tank buffer at the front end, and a refrigerated dryer and filter at the rear end according to the process requirements.

6. How much electricity does a permanent magnet inverter save compared to a regular fixed-frequency machine?
Depending on actual gas consumption fluctuations, it can typically save 25%-35% in energy. The greater the fluctuation in gas consumption, the more significant the energy-saving effect.
