22kW Skid Mounted Low Pressure VSD Single Stage Air Compressor

Elily 22kW Skid-Mounted Low-Pressure VSD Single Stage Rotary Screw Air Compressor supports customizable working pressure of 3–6 bar. Featuring plug-and-play skid-mounted construction, it delivers high airflow with outstanding energy efficiency for low-pressure production demands.

1. Dedicated PM VSD Low-Pressure Design, Superior Energy Saving

Fitted with a 22kW permanent magnet variable frequency motor, the optimized single-stage low-pressure airend adopts upgraded rotor profiles. Working pressure is adjustable within 0.3–0.6 MPa, with maximum airflow up to 6.5 m³/min at 0.3 MPa. Practical field tests prove 25%–35% energy savings versus conventional fixed-speed compressors, ideal for low-pressure continuous operation.

2. Integrated Skid-Mounted Structure, No Foundation Required

The whole machine is assembled on a heavy-duty steel skid base. No anchor bolt installation is needed. After positioning via forklift or crane, only power and pipe connection are required. Fully pre-commissioned before shipment, the unit cuts on-site installation time by 70% for rapid commissioning.

3. Single-Stage Low-Pressure Compression for Optimized Efficiency

Single-stage compression avoids inter-stage pressure loss, performing more efficiently at low pressure than two-stage compression systems. It runs with lower discharge temperature, extends lubricant service life and reduces routine maintenance expenses. For aeration processes, this 22kW low-pressure model achieves 12% better specific power performance than mainstream industry benchmarks.

4. Comprehensive Safeguards for Severe Working Conditions

The permanent magnet motor is IP54 protected with Class F insulation. The control cabinet comes with built-in dust filters, adapting to dusty, high-temperature workshops such as cement production plants.

Multiple safety protections cover over-temperature, over-pressure, over-current, phase loss, phase reversal and unstable voltage, enabling reliable 24-hour continuous unattended operation.

Product parameters:

Wide Industry Applications

Our low-pressure high-flow VSD screw air compressors are widely adopted across diverse industrial fields, perfectly replacing traditional high-pressure reducing systems and Roots blowers with higher efficiency and lower operating costs.

Textile Industry: Stable low-pressure air supply for air-jet looms, air-jet spinning equipment and automatic winding machines, ensuring consistent weaving quality and continuous production.

Glass Industry: Ideal for float glass production air cushion support, glass bottle blowing molding, and pneumatic conveying of raw glass materials, delivering large airflow at stable low pressure.

Chemical & Petroleum Industry: Serves low-pressure nitrogen replacement, instrument air systems, and pneumatic powder conveying for materials such as PVC and PTA, supporting safe and standardized chemical production.

Food & Beverage Industry: Provides reliable air source for PET blow molding machines, raw material pneumatic conveying, automatic packaging equipment, and fermentation oxygen supply, meeting hygienic and stable production requirements.

Electronics Manufacturing: Supplies constant-pressure clean air for precision pneumatic components, chip mounters, and cleanroom air systems, adapting to high-precision electronic processing environments.

Cement & Building Materials: Applied for air chute conveying, homogenization silo aeration, bulk loading systems and pneumatic control valves, improving material conveying efficiency in building material production.

Environmental Protection & Water Treatment: Perfect replacement for traditional Roots blowers in wastewater aeration, flue gas desulfurization and oxidation processes, featuring lower noise and significant energy savings.

Pharmaceutical Industry: Supplies steady compressed air for fermentation tank operation, pneumatic material mixing and automatic material conveying, complying with pharmaceutical production stability standards.

Rubber & Plastics Industry: Used for pneumatic-assisted injection molding, profile air cooling and pelletizer air supply, stabilizing molding processes and improving finished product quality.

Wood Processing Industry: Applicable for pneumatic wood chip collection and board vacuum adsorption, supporting automated wood processing and dust removal systems.

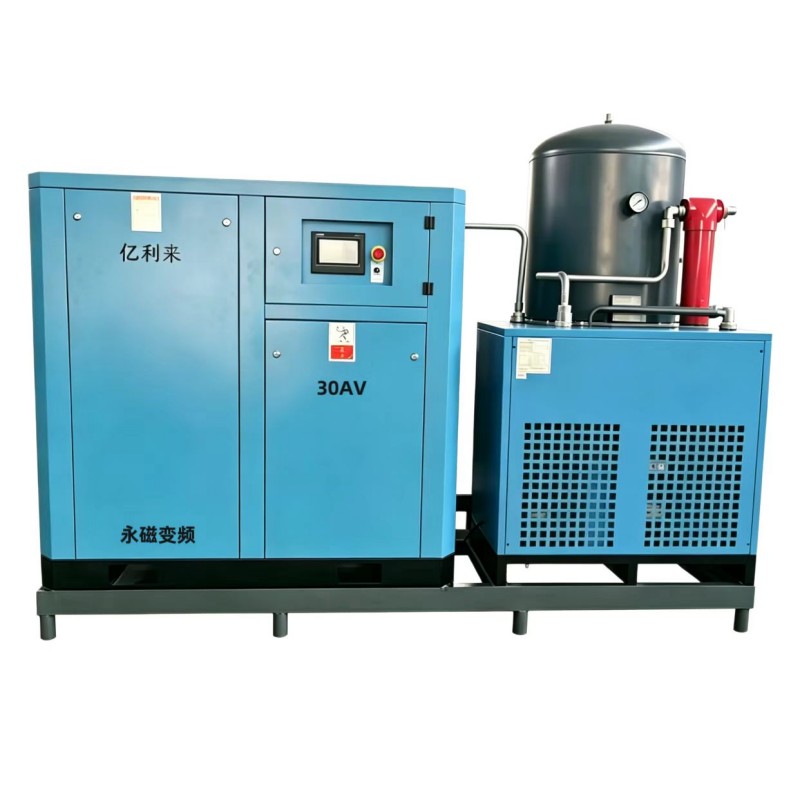

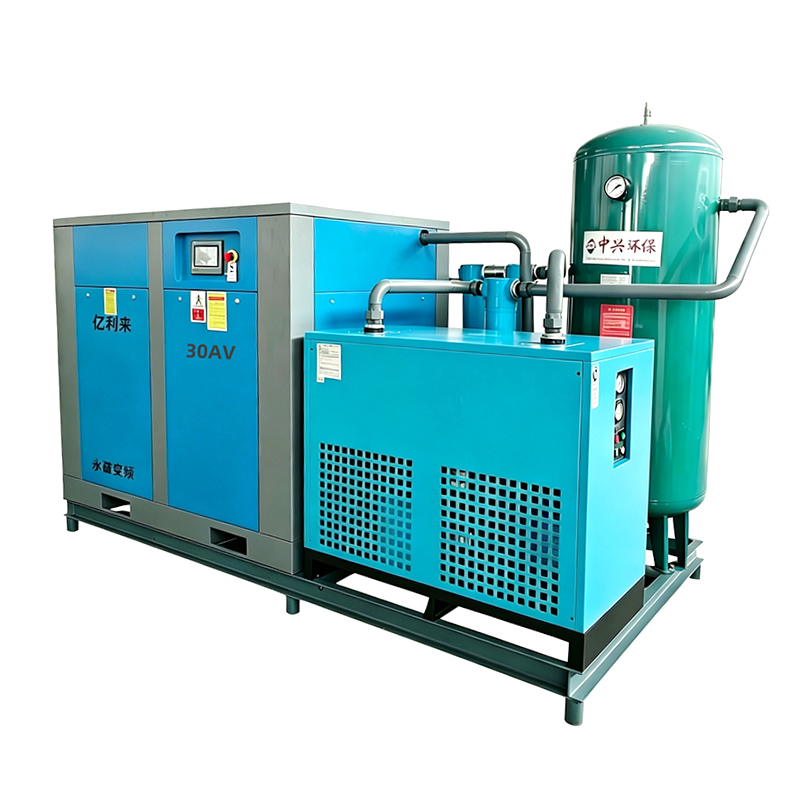

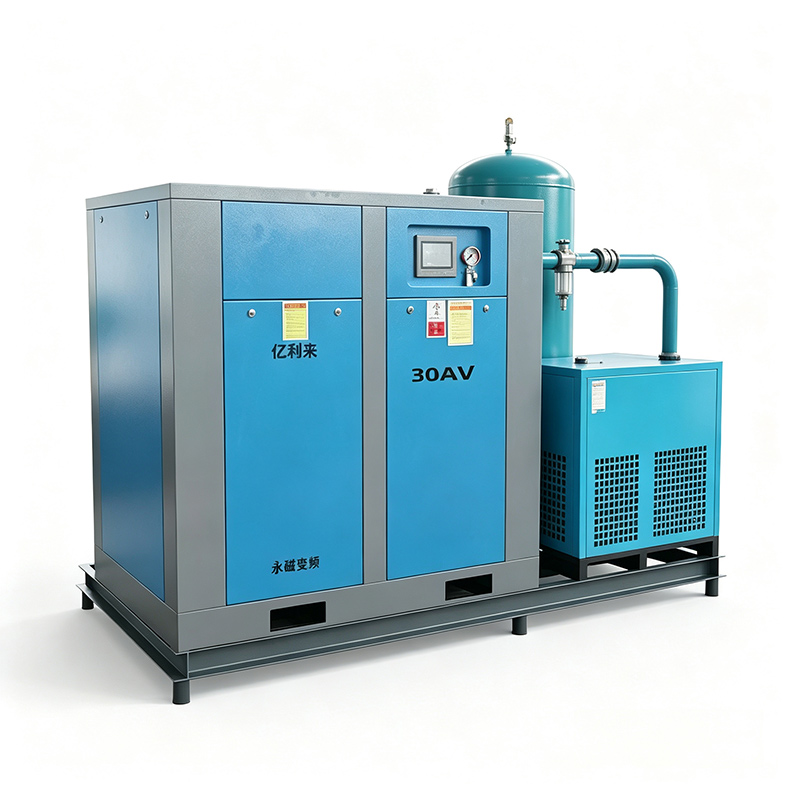

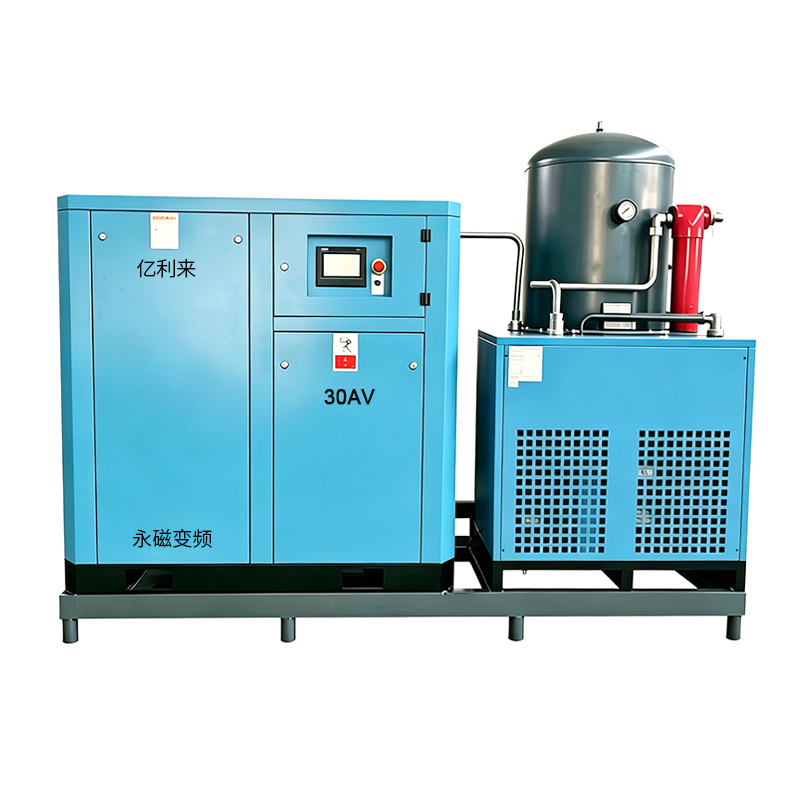

Product photos

Company Background

Guangdong Yili Machinery Equipment Co., Ltd. (Brand: Elily) is a high-tech enterprise specializing in the R&D, manufacturing and sales of compressed air purification and gas separation equipment.

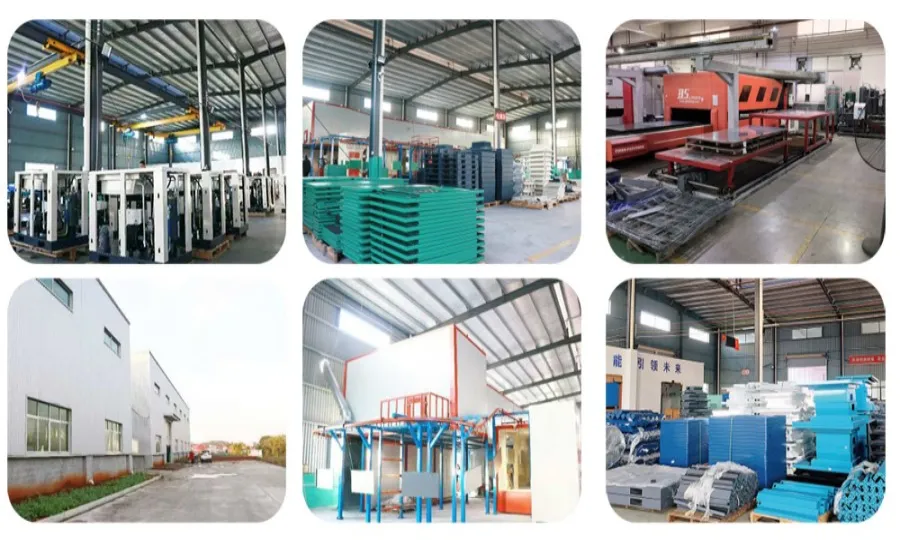

We operate a modern production base of 20,000 m², including 8,000 m² of workshop space equipped with advanced processing machinery and standardized assembly lines.

Our technical team includes more than 20 senior engineers, and core team members have over 10 years of professional industry experience. The company holds ISO9001 quality management system certification, and our core products are certified with CE marks. We implement full-process quality control from raw material incoming inspection to finished product delivery to guarantee stable and reliable performance of every unit.

We achieve an annual production capacity of over 2,000 units. Standard models can be delivered within 15–20 working days. Our products are exported to more than 30 countries and regions across Southeast Asia, the Middle East, Europe and the Americas.

We adopt factory-direct supply model and support OEM customization. We deliver high-performance, cost-efficient gas solutions to global customers with reliable quality and rapid response support.

FAQ

Q: What types of air compressors does your factory mainly produce?

A: We focus on the R&D, manufacturing and sales of various screw air compressors, including fixed-speed models, permanent magnet VSD compressors, two-stage permanent magnet VSD compressors, low-pressure dedicated compressors and mobile screw compressors.

Q: Do you accept third-party factory audits and pre-shipment inspections?

A: Yes. We welcome customers to appoint authoritative third-party institutions including SGS, BV and TÜV to carry out factory audits or on-site product inspections before delivery.

Q: What quality control procedures are adopted in your factory?

A: We follow a rigorous three-level inspection mechanism: self-inspection, mutual inspection and professional inspection. Standardized incoming material testing, full-process production monitoring and final finished product recheck are implemented to ensure all delivered equipment maintains consistent reliable quality.

Q: Do you own overseas warehouses or local service outlets?

A: At present, goods are shipped directly from our China factory. Consolidated bulk shipments can be organized for Southeast Asia and the Middle East subject to order quantity. Please consult our sales team for information about local partner warehouses.
