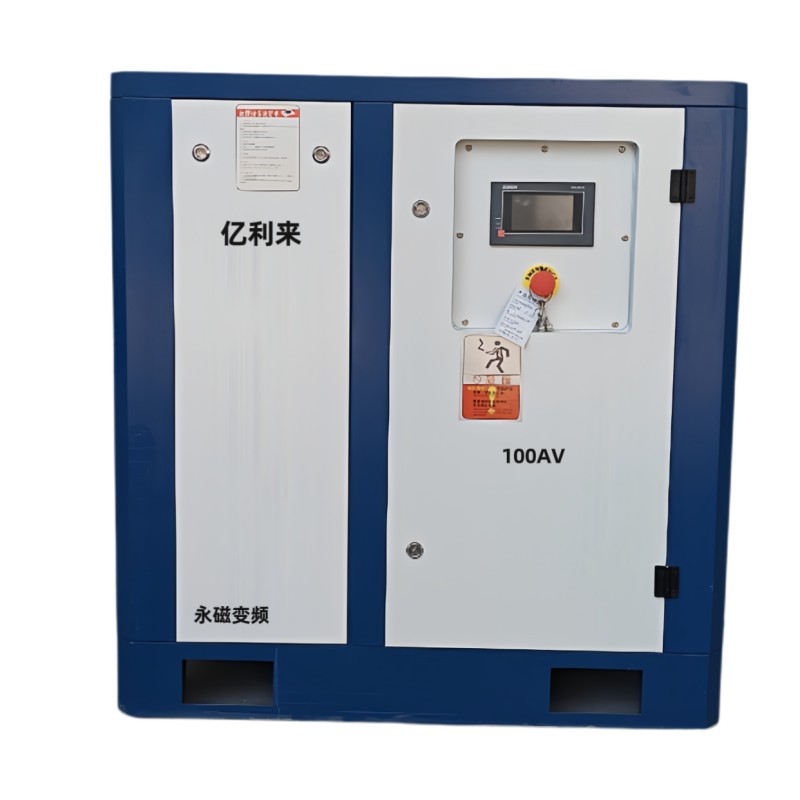

China Standalone VSD Single Stage Air Compressor Manufacturer

Standalone VSD Single Stage Air Compressor systems represent a pivotal shift in industrial compressed air technology, combining variable speed drive precision with the simplicity of a single-stage compression design. These integrated units deliver exceptional energy savings, precise pressure control, and a compact footprint, making them the go-to solution for operations that demand reliability and efficiency. Elily has engineered this category of compressors to offer unmatched performance in a standalone package that requires minimal installation effort.

Frequently Asked Questions

What exactly makes this compressor “standalone,” and how does it simplify my installation?

A standalone design means that all necessary air treatment and control components are pre-assembled, wired, and piped inside one chassis. With an Elily Standalone VSD Single Stage Air Compressor, you receive a machine that includes a high-efficiency refrigerated dryer, coalescing and particulate filters, an electronic condensate drain, and often an air receiver mounted inside the canopy. The only site connections required are the main power supply and a single compressed air outlet pipe. This eliminates the time and cost of sourcing separate dryers, installing bypass piping, and synchronizing multiple controllers. It also ensures that the entire system is perfectly matched from a thermal and airflow standpoint, giving you a predictable, tested assembly that starts producing dry, clean air within hours of delivery.

Why choose a single-stage design instead of a two-stage compressor?

Single-stage compression is ideal for pressure ranges up to 13 bar, which covers the vast majority of industrial applications including packaging, general automation, woodworking, and tire service. A well-designed single-stage rotary screw compressor delivers excellent specific power in this band while having fewer mechanical parts than a two-stage unit—only one airend, one set of bearings and seals, and simpler oil circulation. For the typical shop operating at 7–10 bar, the Elily single-stage VSD machine achieves the same or better energy efficiency as a two-stage at a lower capital cost and with reduced maintenance complexity. If your process consistently requires pressures above 15 bar, then multi-stage compression becomes necessary, but for standard plant air requirements, the single-stage design is the sweet spot of reliability and economy.

How does the VSD handle fluctuating demand across shifts?

The Elily VSD system uses a pressure sensor on the outlet manifold that sends a 4–20 mA signal to the inverter. When air demand increases and pressure dips by as little as 0.1 bar, the controller accelerates the motor smoothly to restore set pressure. Conversely, as demand falls, the motor slows down proportionally, consuming only the energy required to deliver the exact flow needed. This modulation range typically spans from 20% to 100% motor speed. Because many plants experience demand variation of 40–70% between shifts or during breaks, the compressor spends most of its life at part load—where VSD savings are most dramatic. Customers typically report energy reductions of 25–35% compared to replacing a fixed-speed compressor of the same capacity.

Can I integrate the Elily Standalone VSD compressor into my existing plant control network?

Absolutely. The Xpert controller supports Modbus TCP, Profinet, and EtherNet/IP protocols as standard. It can be connected to a plant’s SCADA or building management system to allow remote monitoring of pressure, temperature, running hours, and maintenance alerts. Elily also offers a cloud-based monitoring platform where multiple compressors across different sites can be viewed from a single dashboard. Dry contacts and analog I/O are also available for simpler integration. All network configuration is handled through the touchscreen interface without requiring specialized software.

Partnership with Elily – Beyond the Machine

Choosing a Standalone VSD Single Stage Air Compressor from Elily means entering a partnership built on two decades of compressed air expertise. We provide comprehensive air audits before installation, ensuring the unit is sized correctly for both current and future demand. Training programs for plant personnel cover daily operation, energy monitoring, and interpretation of controller data to further optimize system efficiency. Our genuine spare parts are kept in regional warehouses to guarantee quick delivery, and service kits make routine maintenance foolproof. Elily’s engineers continue to refine the VSD logic and mechanical design based on field data from thousands of installed units, so the compressor you install today benefits from continuous improvement cycles.

The combination of robust single-stage mechanics, variable speed intelligence, and everything-in-one-box convenience makes the Elily Standalone VSD Single Stage Air Compressor an asset that pays dividends from day one. Factory acceptance tests confirm each machine’s performance data match the published specifications, and remote access to operating parameters gives you complete transparency into the health and efficiency of your compressed air system. When uptime, energy control, and simplified maintenance are non-negotiable, this machine represents a benchmark in modern compressed air engineering.
