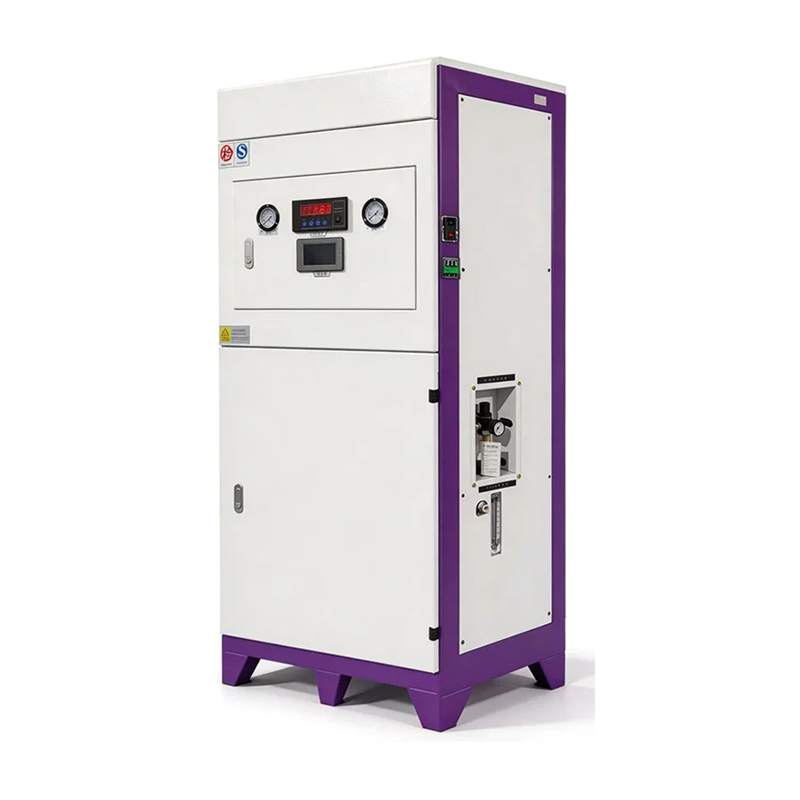

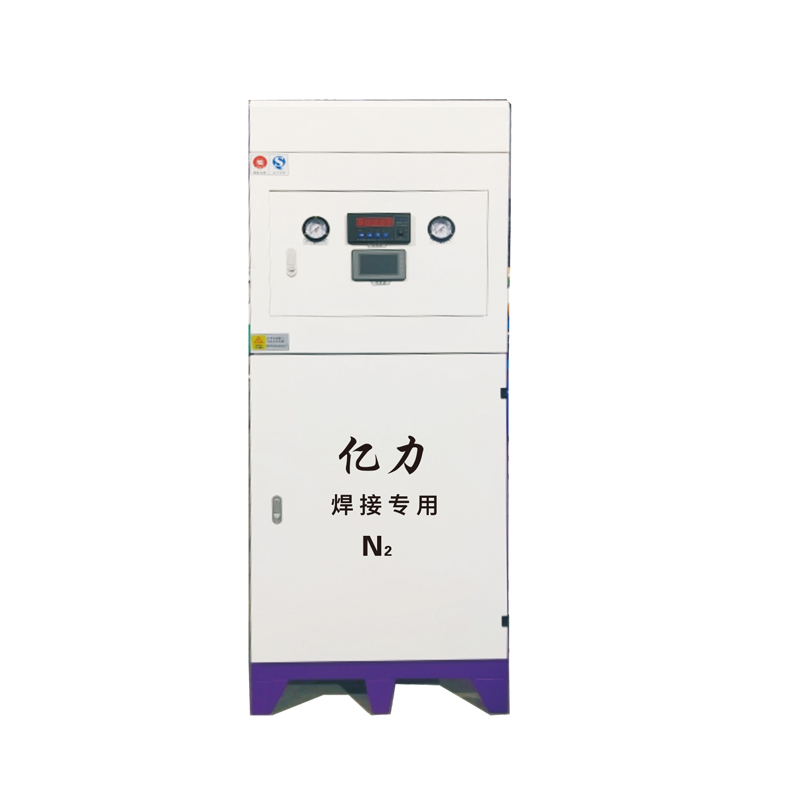

1 Nm³/h Mini Nitrogen Generator for Welding

Elily’s 1 Nm³/h Mini PSA Nitrogen Generator for Welding delivers standard nitrogen purity of 99.99%, with optional customization up to ultra-high 99.999% purity for precision manufacturing requirements.

We provide a complete flow range spanning 1 Nm³/h to 20 Nm³/h, with full customization available to match your unique production parameters. The high-purity nitrogen fully blocks oxygen exposure during welding to produce bright, discoloration-free weld joints. Fully automatic on-site nitrogen production also cuts operational costs and minimizes manual supervision workload.

Core Product Advantages

I. High Purity Performance, Precisely Optimized for Welding Processes

The standard configuration delivers stable 99.99% high-purity nitrogen, with customizable ultra-high purity up to 99.999% for precision welding scenarios. High-purity nitrogen effectively isolates the welding zone from ambient oxygen, fundamentally preventing weld oxidation, surface discoloration, and internal porosity. It produces smooth, bright, and uniform weld sections, greatly reducing post-weld grinding, rework, and defective rates, and significantly improving final product yield.

This nitrogen generator adapts perfectly to the welding of stainless steel, aluminum, copper, and various alloy materials, delivering consistent and reliable welding quality for diverse processing demands.

II. Complete Specification Range, Supporting Standard and Custom Solutions

Our product lineup covers all mainstream flow rates from 1 Nm³/h to 20 Nm³/h, including 1, 3, 4, 5, 8, 10, 15 and 20 Nm³/h models. It can accurately match both single small welding stations and centralized gas supply systems for multiple workshop workstations.

All core parameters including nitrogen flow rate, outlet pressure, purity grade, and overall equipment dimensions support full personalized customization according to actual workshop layout and production requirements. Customers can achieve fully on-demand configuration without capacity waste, avoiding compromises caused by fixed standard models.

III. Mature PSA Nitrogen Generation Technology, Fast Output and Stable Purity

Adopting ambient-temperature Pressure Swing Adsorption (PSA) technology, the equipment applies a dual-tower alternating adsorption and regeneration system, equipped with high-quality imported carbon molecular sieves. Qualified standard-purity nitrogen can be steadily produced within 20 minutes after startup.

Supported by intelligent PLC automatic control, the machine maintains constant pressure, stable purity, and continuous flow output during long-term operation without performance attenuation. It supports 24-hour uninterrupted cyclic operation to fully meet continuous industrial welding production needs.

IV. Integrated Skid-Mounted Structure, Small Footprint and Easy Installation

The whole machine adopts an integrated skid-mounted compact design with a neat and reasonable internal layout, minimizing workshop space occupation. It requires no customized concrete foundation construction or complex pipeline layout.

After placing the unit on a flat ground and connecting power and compressed air sources, the equipment can realize fully automatic on-site nitrogen production. The operation process is simple and intuitive, requiring no professional technicians for installation, commissioning, or daily operation, effectively saving labor and engineering costs.

V. On-Site Self-Gas Supply, Highly Cost-Effective Replacement for Liquid Nitrogen

The system takes atmospheric air as the raw material and only consumes electric power during operation, completely eliminating the recurring cost of purchasing bottled nitrogen or liquid nitrogen. As a one-time investment for long-term self-sufficient gas supply, it greatly reduces enterprises’ daily gas consumption expenditure.

With durable carbon molecular sieves, low failure rate, and simple daily maintenance, the equipment investment can generally be recovered within 1 to 2 years. It is the most economical and reliable long-term nitrogen supply solution for welding factories and precision processing workshops.

Key Product Specifications

Scope of Application

Elily’s 1 Nm³/h Mini PSA Nitrogen Generator features wide process compatibility, covering laser welding, TIG welding, precision spot welding, sheet metal welding, stainless steel pipe welding, and aluminum alloy welding.

It is widely applied in multiple core industries, including new energy lithium battery manufacturing, precision electronic component welding, sheet metal processing, medical device production, automotive parts fabrication, and equipment cabinet & chassis manufacturing.

Throughout the whole welding procedure, the supplied high-purity nitrogen provides continuous and comprehensive shielding protection for weld seams. It effectively avoids metal oxidation and weld discoloration, significantly improving overall welding quality, stabilizing finished product consistency, and boosting production efficiency.

Company Strength

Guangdong Yili Machinery Equipment Co., Ltd. is a national high-tech enterprise specializing in the research and development, manufacturing, and global sales of industrial gas separation equipment.

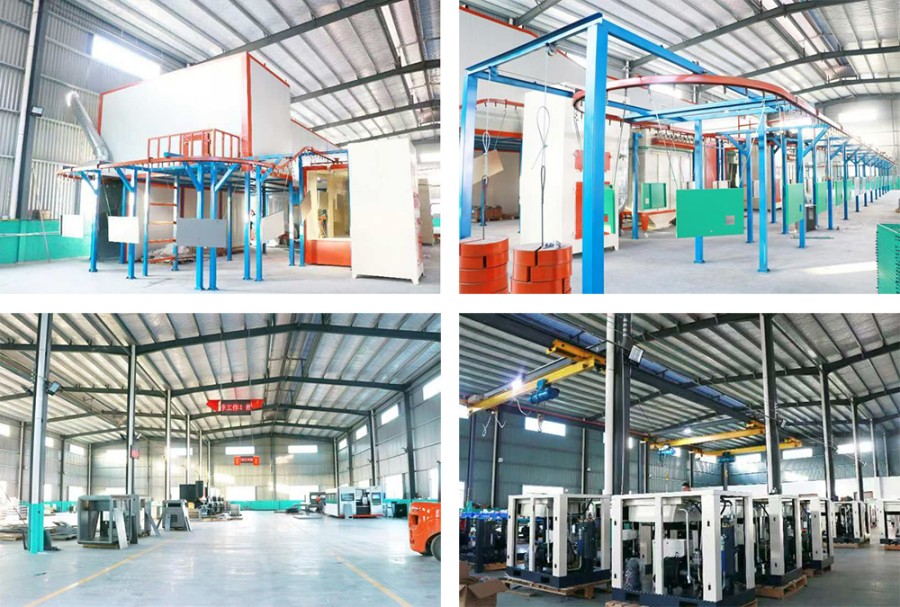

Our company owns a modern production base covering over 20,000 square meters, equipped with a professional performance testing laboratory and standardized assembly and aging test lines. Every piece of equipment undergoes rigorous testing and stable aging operation before delivery, ensuring consistent reliability for end-user applications.

With in-depth technical accumulation in PSA nitrogen generation technology, we have targeted and optimized core configurations including carbon molecular sieve matching, internal airflow distribution, and intelligent control systems to solve practical gas supply pain points in the welding industry.

We support stable mass production of full-range nitrogen generators with flow rates from 1 Nm³/h to 20 Nm³/h, as well as customized ultra-high purity solutions up to 99.999%.

Up to now, our equipment has served thousands of manufacturers across welding, sheet metal processing, new energy lithium battery, and precision manufacturing industries. The outstanding operational stability and reliable nitrogen purity performance have been fully verified by long-term on-site industrial applications.

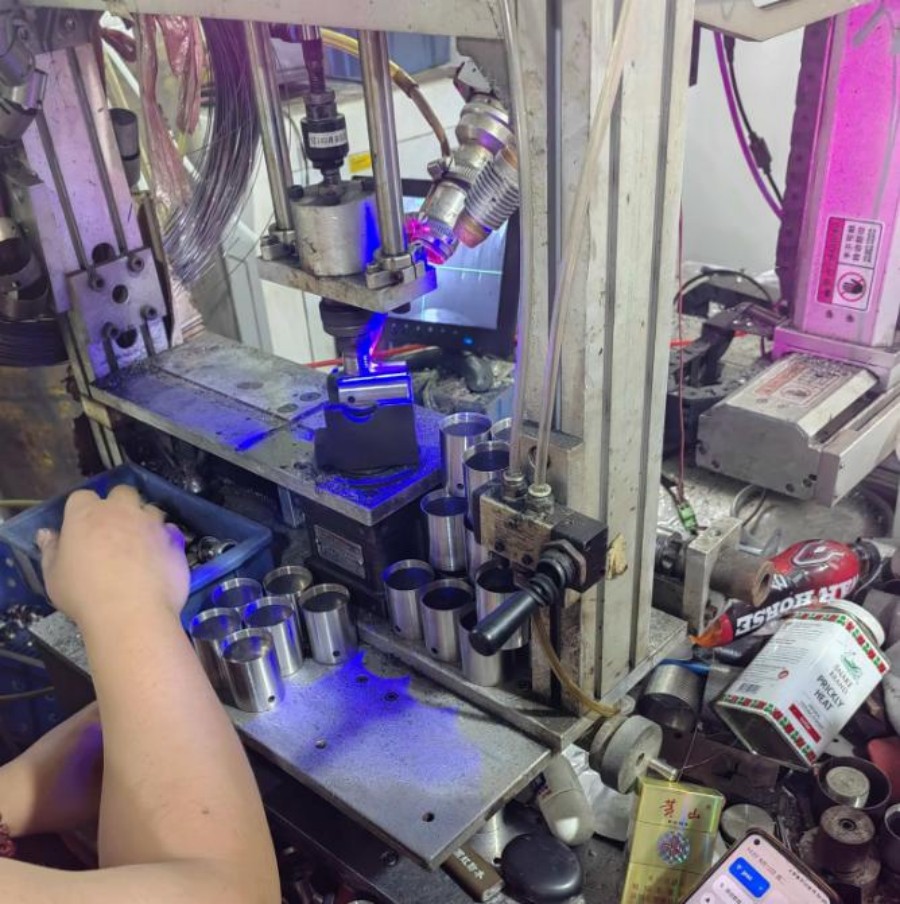

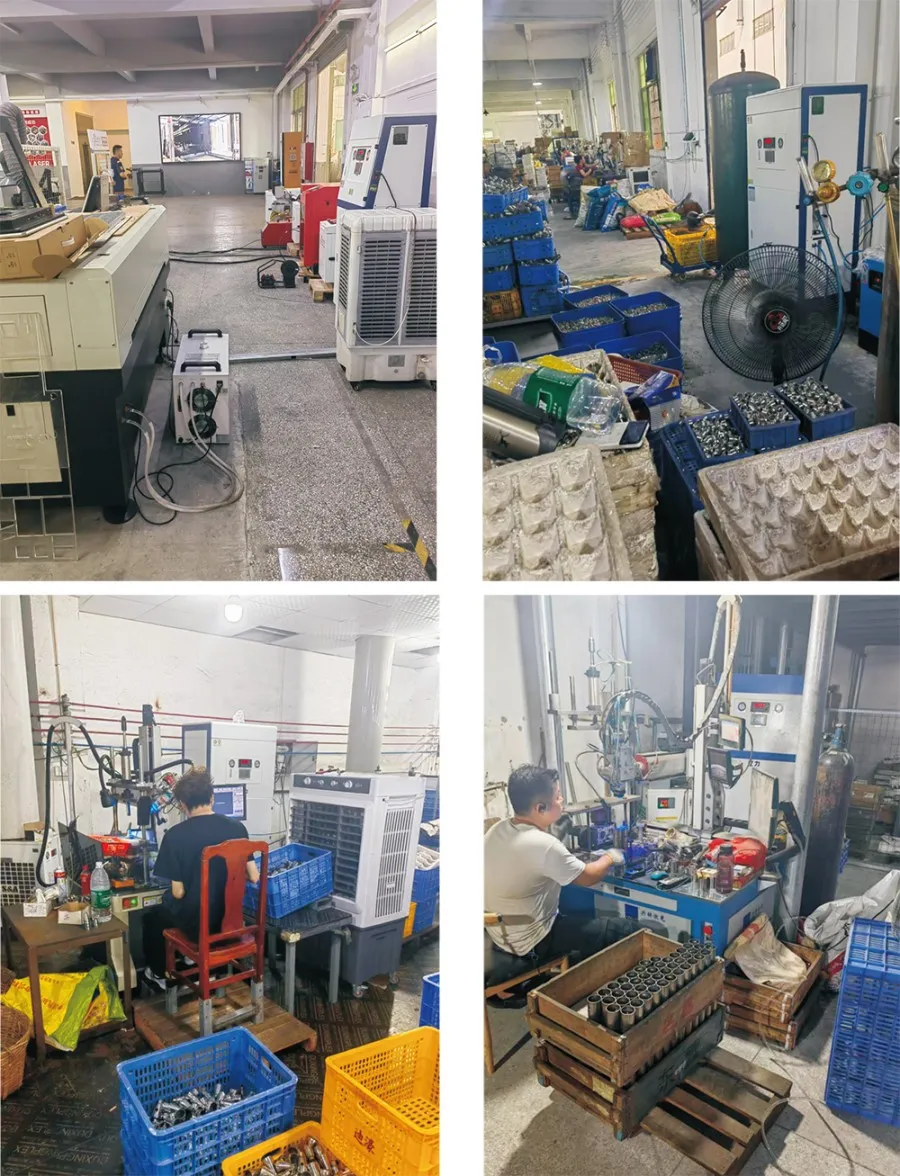

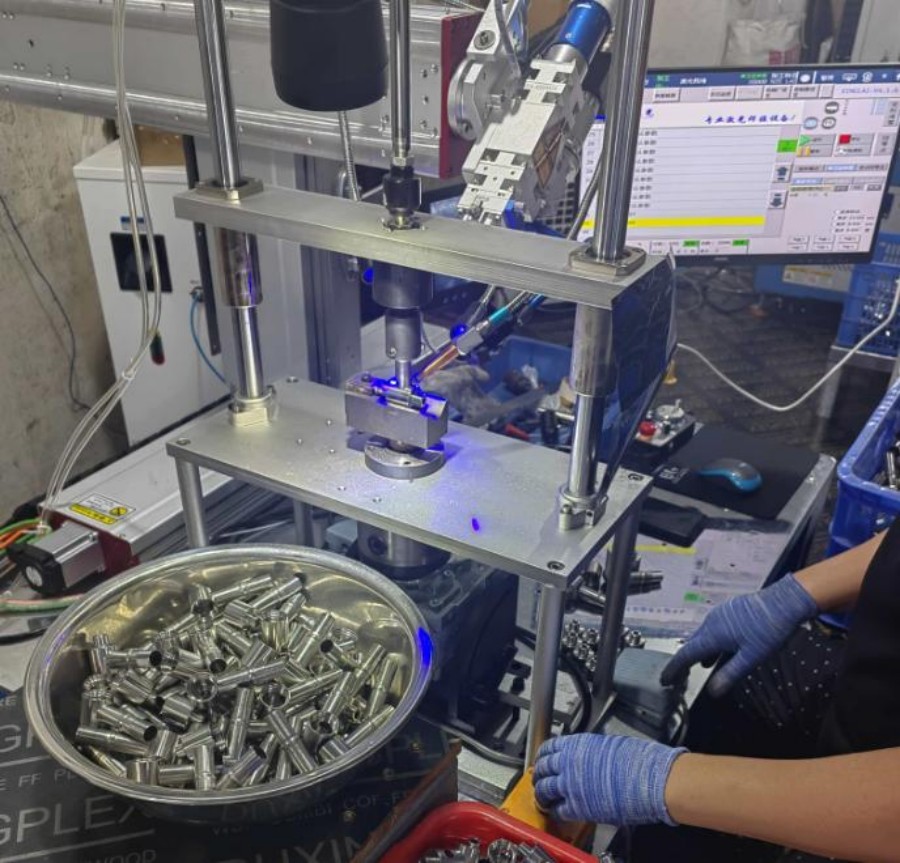

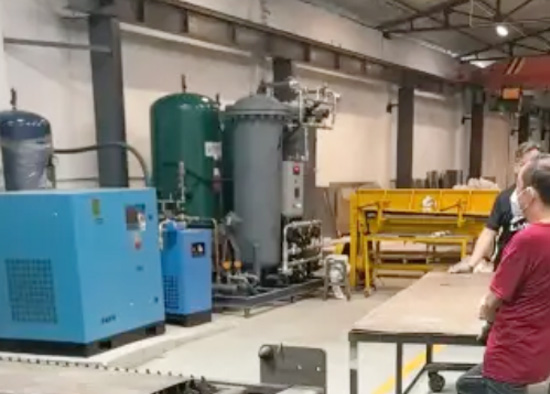

Product Usage at the Customer Site

After-Sales Service

Elily’s 1 Nm³/h Mini PSA Nitrogen Generator for Welding is supported by a standardized and comprehensive after-sales guarantee system. The entire machine enjoys a 1-year general warranty, while the nitrogen generation main unit, PLC intelligent control system, and core carbon molecular sieves are covered by an extended 2-year warranty.

We provide a 2-hour rapid after-sales response for all technical and after-sales inquiries. Professional free technical consultation is available for equipment model selection, working condition matching, and customized gas consumption planning, helping customers configure the most suitable nitrogen supply solution.

Each unit is delivered with a complete official installation manual, together with supporting operation and maintenance tutorial videos, enabling simple and standardized daily operation.

For domestic key regions, on-site inspection and repair services can be arranged within 48 hours. Common wearing and spare parts are kept in sufficient stock all year round, with global delivery completed within 48 hours.

In addition, we offer permanent free technical support, including regular nitrogen purity calibration, system parameter optimization, and long-term operational guidance to ensure stable and efficient equipment performance throughout the service life.

FAQ

Q: What standard nitrogen purity is required for welding processes?

A: 99.99% purity meets the demands of regular welding work. For precision electronic component and lithium battery welding, we provide customizable ultra-high purity up to 99.999%, which thoroughly avoids weld oxidation and pore defects.

Q: What standard flow rate models do you have in stock?

A: Our ready-to-ship specifications cover 1, 3, 4, 5, 8, 10, 15 and 20 Nm³/h. Customized flow rates, working pressures and nitrogen purity grades are all available for special production demands.

Q: Can one nitrogen generator supply gas for multiple welding machines simultaneously?

A: Yes. Calculate the peak total gas consumption of all welding equipment working at the same time and add a 20% safety allowance (1.2 times the calculated flow). One single unit can realize centralized gas supply for multiple workstations, cutting equipment investment and saving workshop space.

Q: How much time does it take to reach target nitrogen purity after startup?

A: The equipment can output nitrogen that meets standard purity requirements in roughly 20 minutes after startup. It then runs fully automatically around the clock with steady pressure and consistent nitrogen purity.

Q: Does an on-site nitrogen generator save more cost compared to buying bottled or liquid nitrogen?

A: An in-house nitrogen generator removes repeated expenditure on purchased nitrogen gas, greatly lowering long-term production gas costs. Under regular continuous production, the equipment investment can be fully recovered within 1 to 2 years.

Q: Is the installation procedure complicated?

A: Not at all. No dedicated concrete foundation or complex pipeline construction is needed. Just place the unit on flat ground and connect the power supply, and the machine is ready for operation. Installation is extremely simple and can be completed by staff without professional technical background.
