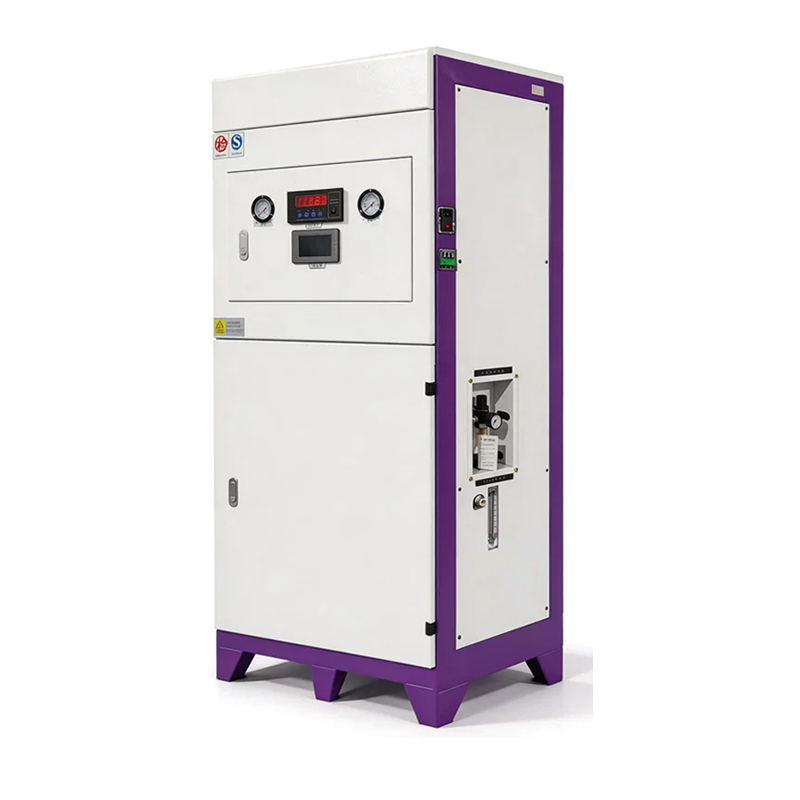

8 Nm³/h Mini Nitrogen Generator for Welding

Core Competitive Advantages of 8 Nm³/h Mini PSA Nitrogen Generator for Welding

Efficient & Fast Nitrogen Supply

Equipped with advanced PSA technology and a precision customized airflow distributor, this 8 Nm³/h mini welding nitrogen generator achieves uniform internal airflow distribution and maximizes the utilization rate of carbon molecular sieves. The equipment can output qualified high-purity nitrogen stably within 20 minutes after startup, realizing rapid gas supply for production.

Flexible Installation & Simple Operation

Adopting an integrated skid-mounted compact structure, the unit features a tiny footprint and high space utilization. It requires no foundation construction or additional infrastructure investment. Users only need to connect the power supply and matched compressed air source to realize on-site independent nitrogen production, with extremely low installation and layout thresholds.

Cost-Effective & Energy-Saving Performance

The PSA nitrogen production process is simple, stable and efficient, with ambient air used as the raw material for nitrogen preparation. The whole system only consumes electric power for the supporting air compressor, with no extra material costs. It delivers outstanding advantages of low energy consumption, low daily operating costs and high working efficiency, helping enterprises greatly reduce long-term production expenditure.

Working Principles of the Products:

1. Pressure Swing Adsorption (PSA) Nitrogen Generation

Carbon molecular sieve serves as the core filter medium. Under pressurized conditions, the sieve selectively adsorbs oxygen, moisture and carbon dioxide. Nitrogen molecules are barely adsorbed and pass through the sieve directly as finished high-purity nitrogen. When depressurized, the adsorbed gases separate from the molecular sieve to complete regeneration, allowing the system to run continuously in cyclic operation.

2. Membrane Separation Nitrogen Generation

This technology leverages the distinct penetration speeds of oxygen and nitrogen molecules inside hollow fiber membranes. Oxygen permeates the membrane quickly and is discharged, while nitrogen accumulates to form concentrated nitrogen product gas.

3. Cryogenic Air Separation Nitrogen Generation

Raw air is first liquefied through low-temperature treatment. Oxygen and nitrogen are then separated via distillation, taking advantage of their different boiling points.

Key core technical parameters

Applications

Laser Welding

Widely applied in power battery manufacturing and precision electronic & aerospace component processing. Nitrogen shielding effectively reduces welding spatter and eliminates porosity, delivering smooth and high-quality weld seams.

SMT Reflow Soldering & Wave Soldering

Ideal for PCB circuit board mass production. Nitrogen atmosphere suppresses solder oxidation, improves soldering wetting performance, and significantly lowers product defect rates.

TIG / MIG Arc Welding

Suitable for welding stainless steel and aluminum alloy structural parts. Nitrogen protection stabilizes the welding process, enhances overall weld strength, and improves surface finish and corrosion resistance of welded joints.

Covered Industries

New energy vehicles, electronic semiconductors, shipbuilding industry, 3D printing technology, medical equipment manufacturing and other precision manufacturing fields.

Our Partners

FAQ

Q: What purity standard does welding-grade nitrogen need to meet?

A: A minimum nitrogen purity of 99.99% is generally required. The exact purity standard varies according to your welding process and finished product quality requirements.

Q: What factors will lead to reduced nitrogen output?

A: The main triggers include insufficient inlet compressed air pressure, blocked filter elements, aging sealing rings of pneumatic valves and pulverized carbon molecular sieves. Our technicians can guide you through step-by-step troubleshooting or offer remote inspection support.

Q: How can overseas buyers get technical after-sales support?

A: You may reach our team by email or WhatsApp. We provide bilingual Chinese & English service and reply to general technical inquiries within 24 hours.

Q: Why is nitrogen adopted as shielding gas in welding processes?

A: At high welding temperatures, base metal will react with oxygen in the air and form defective welds. Nitrogen serves as inert shielding gas, forming an oxygen-free protective atmosphere around the welding zone and isolating the molten metal from ambient air oxidation.
