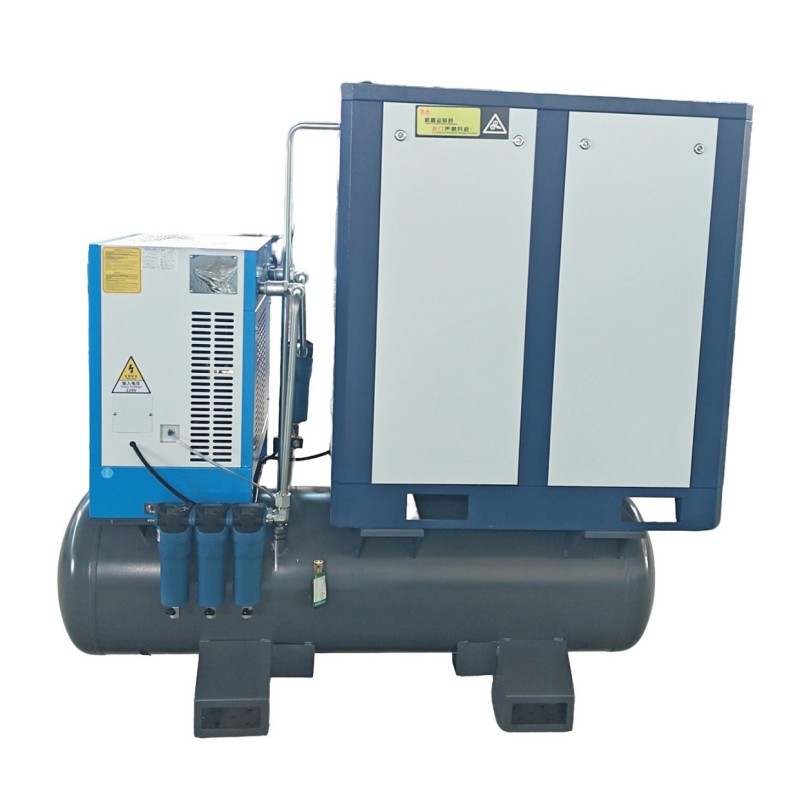

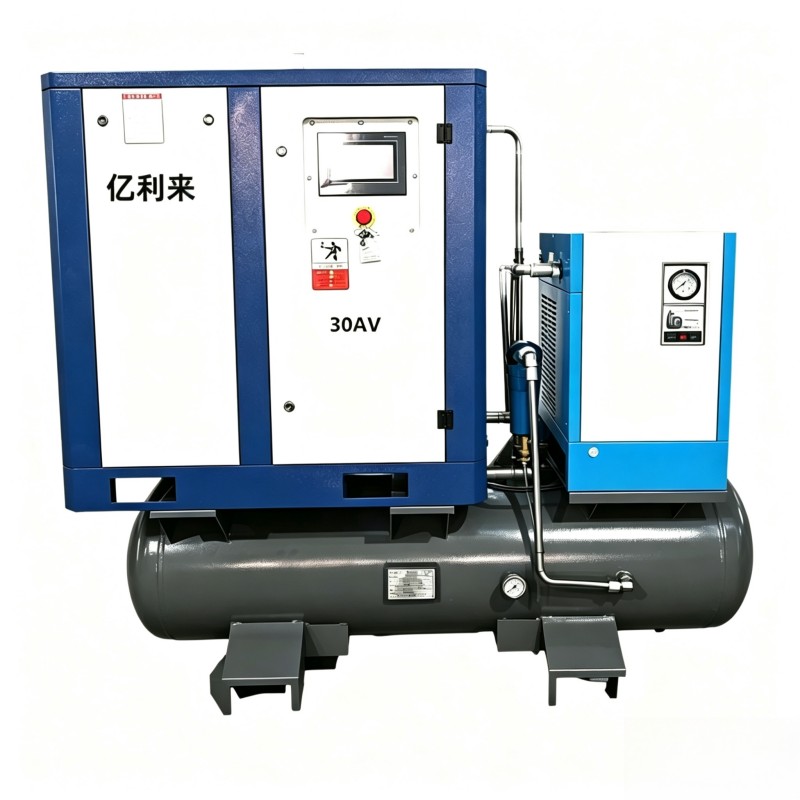

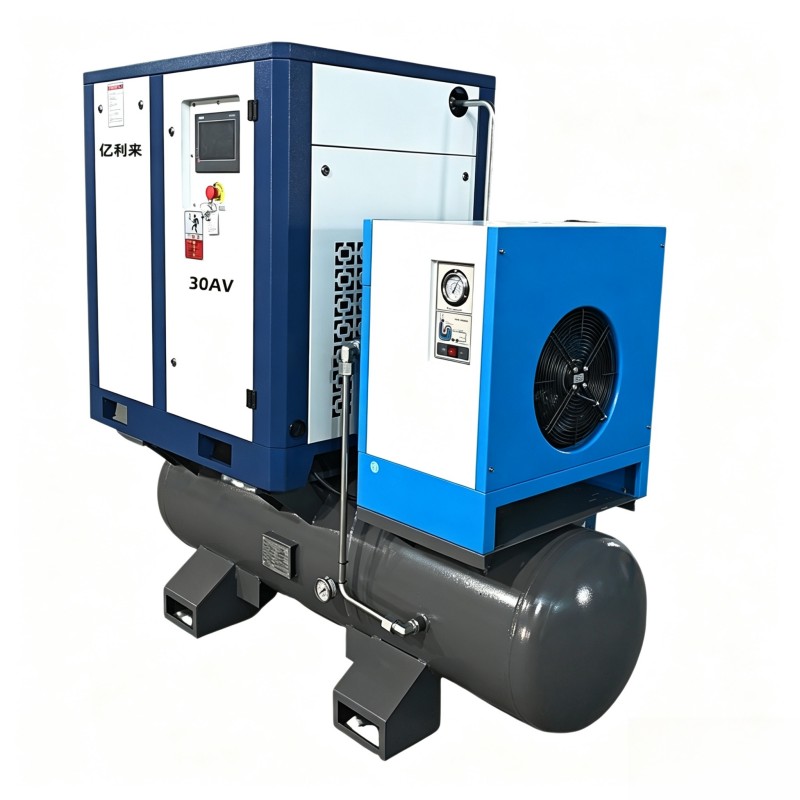

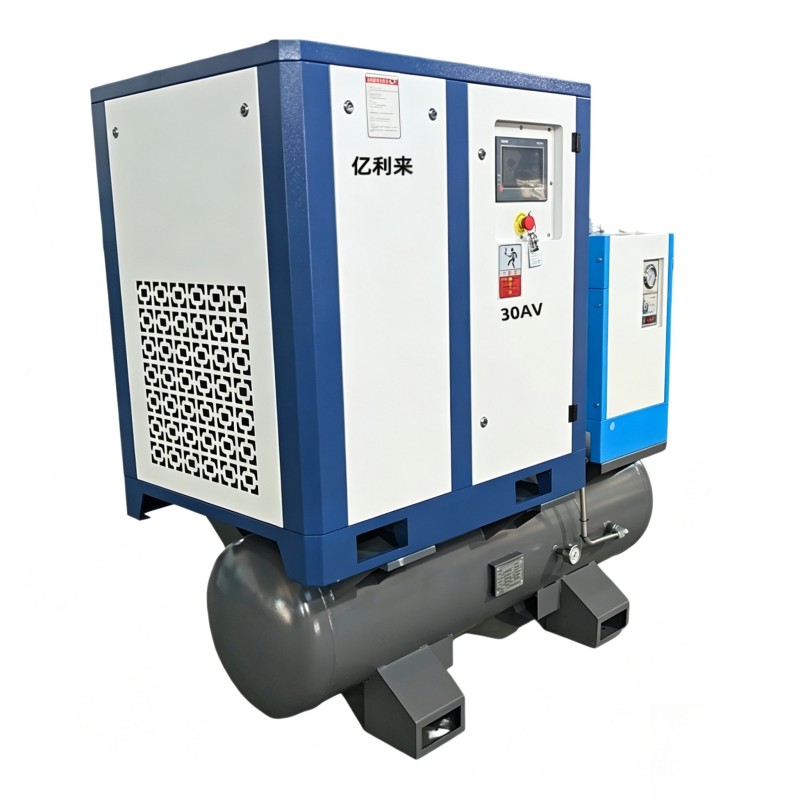

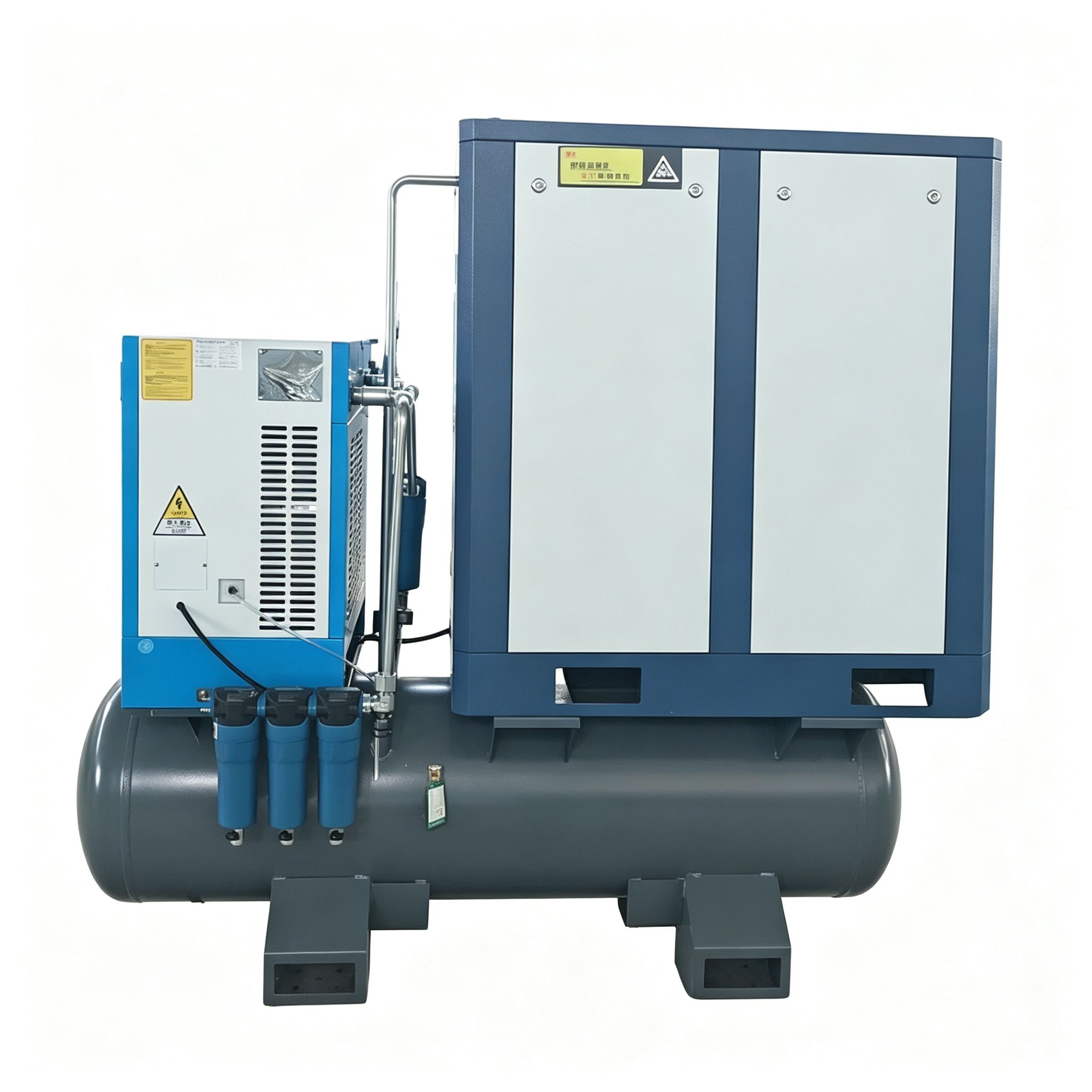

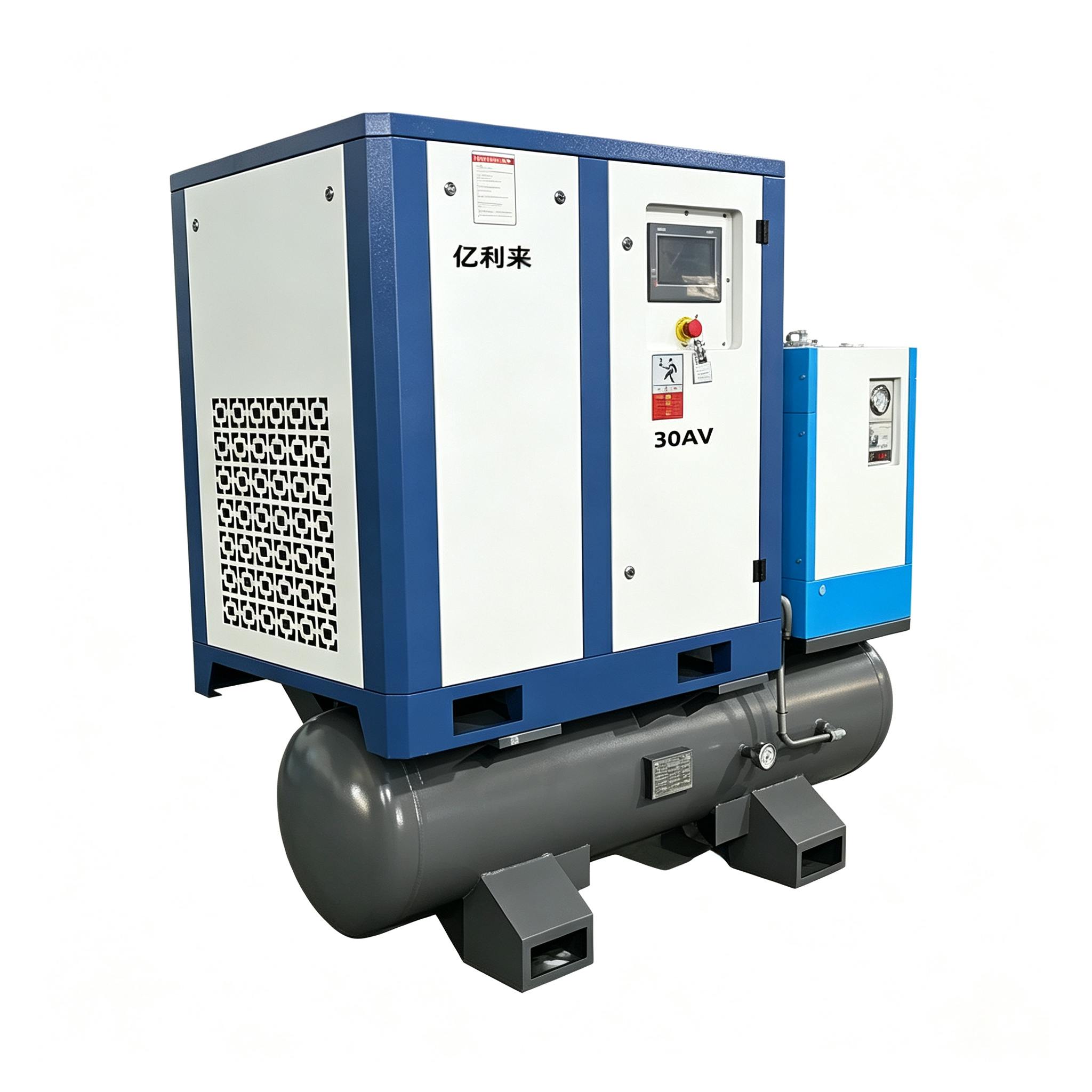

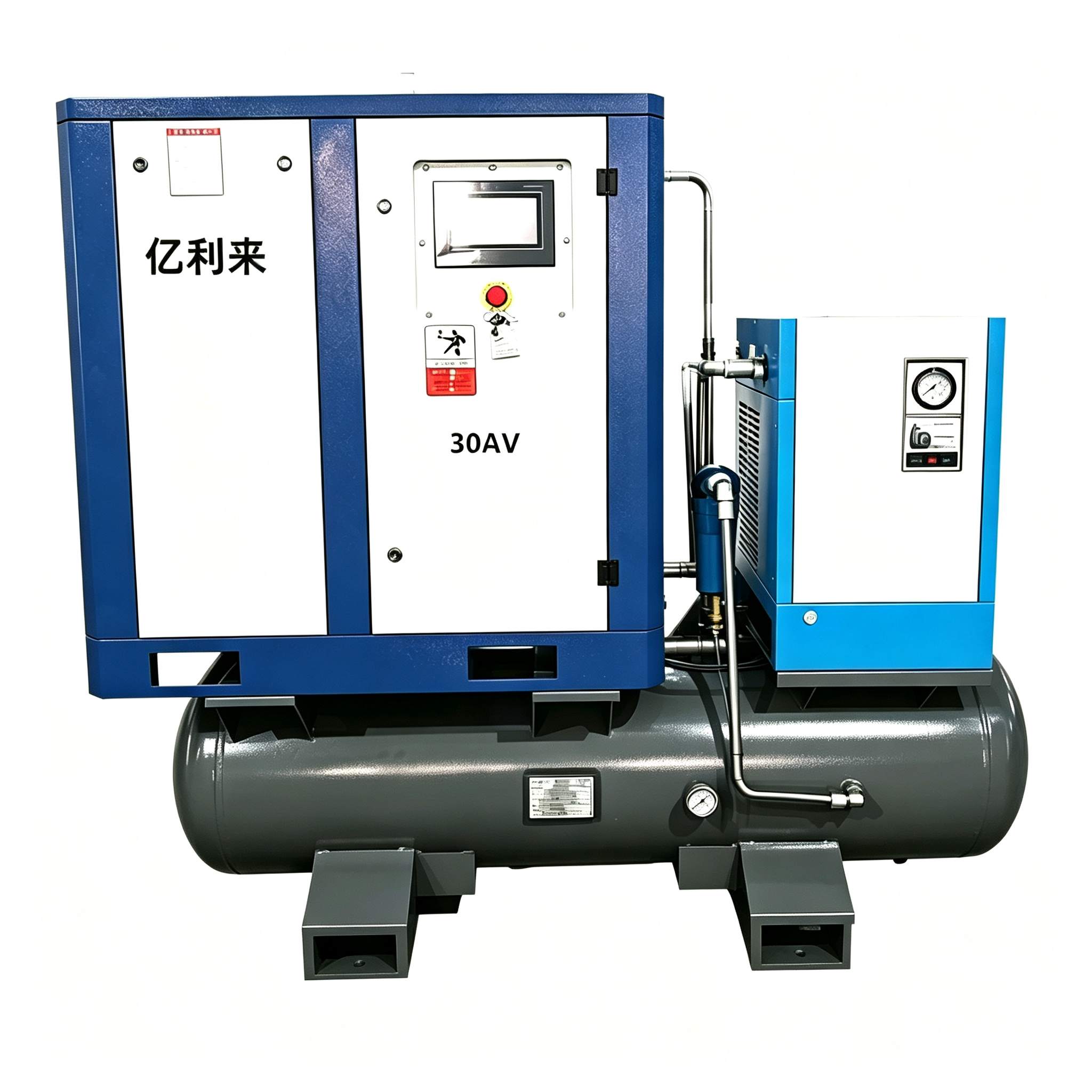

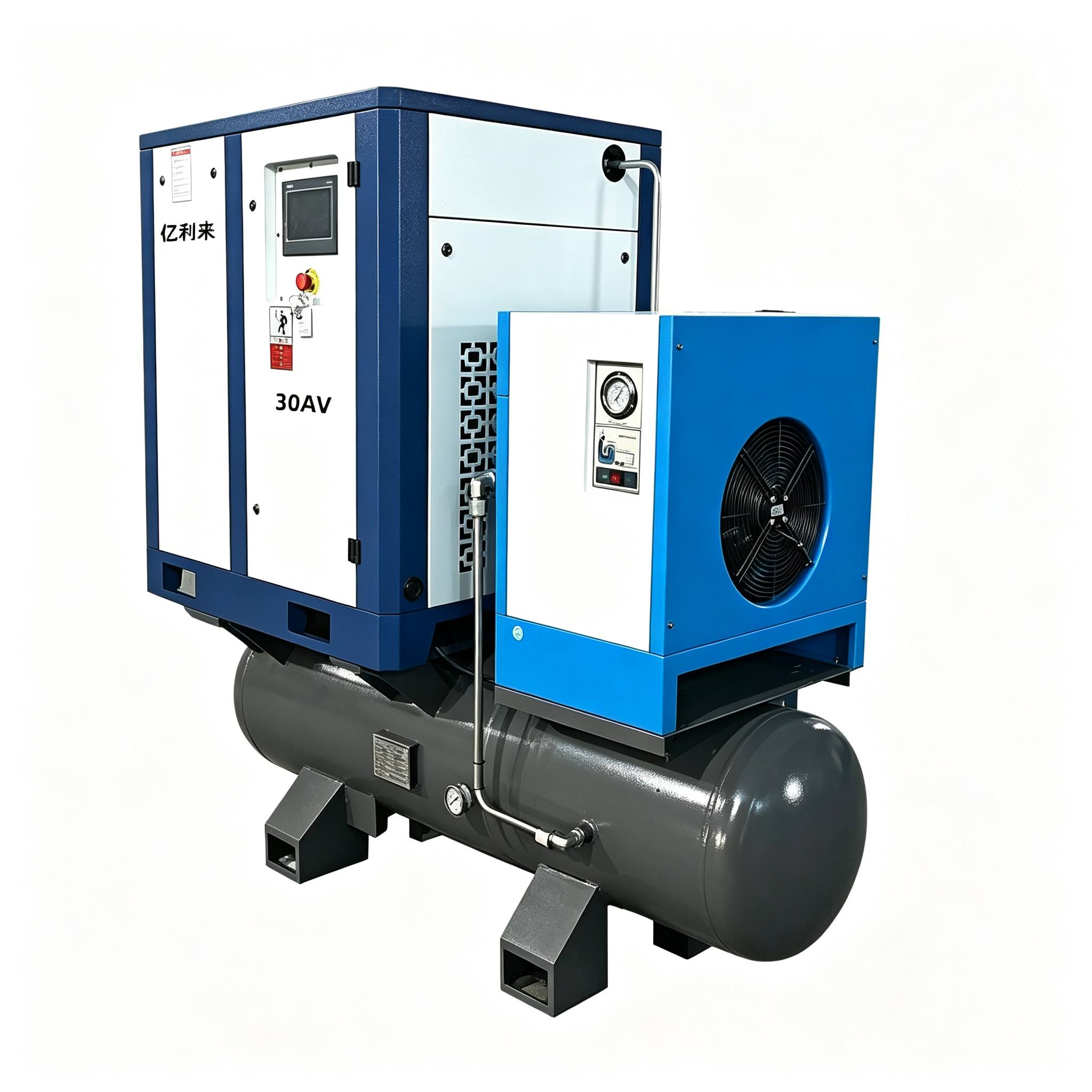

22kW High Pressure 4 in 1 Fixed Speed Air Compressor

Core Product Design

Elily 22kW high-pressure 4-in-1 fixed-speed air compressor supports customizable working pressure from 10 bar to 15 bar. Featuring a large-displacement integrated design, it effectively replaces multiple traditional piston compressors. Built with a reliable fixed-speed structure, the unit delivers stable and trouble-free long-term operation.

Equipped with a heavy-duty 22kW high-pressure fixed-speed main airend with strong load-bearing capacity, it outputs sufficient air volume under 1.5 MPa high-pressure conditions. It can steadily drive 3 to 4 bottle blowing machines or multiple sets of high-pressure equipment simultaneously with zero obvious pressure drop, perfectly suited for 24/7 continuous high-pressure air supply in industrial factories.

The all-in-one 4-in-1 integrated structure greatly saves air station floor space. It integrates a complete set of high-pressure post-processing equipment, eliminating the need for an independent dedicated compressor room. Reduced pipeline connections effectively lower high-pressure air leakage risks. With a compact layout and simple onsite installation, the unit significantly shortens project commissioning and production startup cycles.

Configured with industrial-grade high-pressure post-processing systems, this compressor delivers nearly oil-free compressed air. It adopts an upgraded large 3.2m³/min high-pressure refrigerated dryer with optimized refrigeration and heat exchange efficiency, ensuring stable water removal performance under continuous high-pressure operation. Four-stage multi-layer filtration deeply removes oil vapor and solid impurities, achieving ultra-low residual oil content. This makes it ideal for high-standard air-demand scenarios including precision spraying and precision machining.

Validated through long-cycle industrial operation tests, the machine features outstanding stability and durability. Built according to heavy-duty industrial standards, it maintains constant pressure output with low failure rates after years of continuous running in large-scale bottle blowing factories. Adopting universal fixed-speed spare parts with easy global availability, the equipment keeps long-term maintenance costs at a low level.

Core Technical Specifications of the Product:

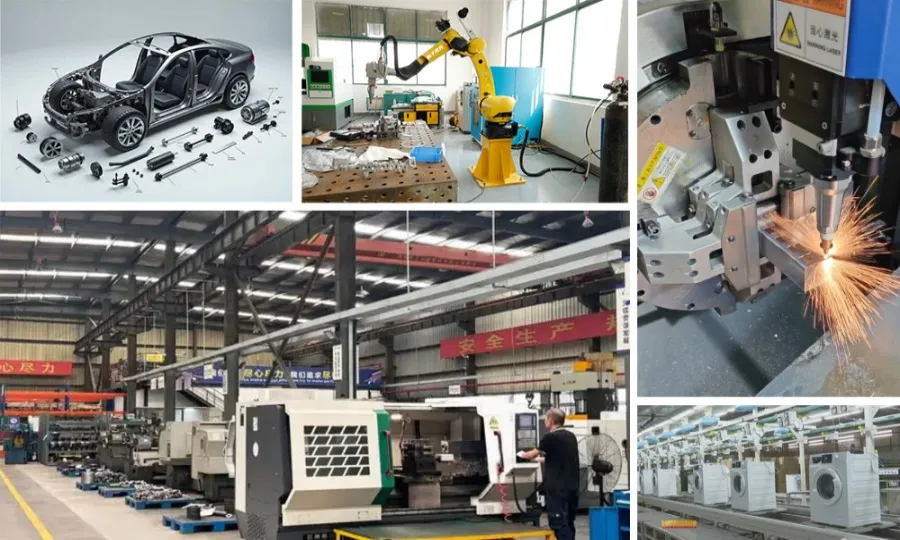

Industries served:

Rubber & plastics, packaging, CNC machining, glass & ceramics, leather processing, woodworking & furniture manufacturing, electronics, central vacuum systems, material handling, and textile printing & dyeing.

Compatible equipment:

Printing machines, engraving equipment, workpiece holding vacuum suction cups, extruders, vacuum coating units, embossing machines, thermoforming devices, pick-and-place vacuum suction cups, CNC machine tools, glass edge grinders, folding machines, vacuum packaging machines.

Company Capabilities

Elily is dedicated to the professional R&D and manufacturing of high-pressure air compressors. We maintain a dedicated high-pressure application laboratory and full-machine durability testing line, where all high-pressure models undergo rigorous overpressure burst tests and long-term full-load operational verification.

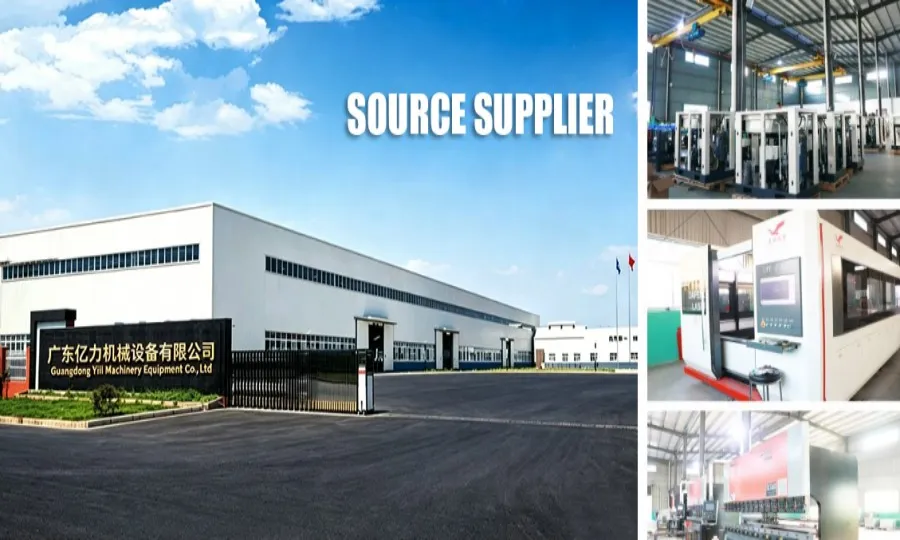

Covering a 20,000-square-meter manufacturing base, our factory is equipped with a specialized 4-in-1 integrated assembly line, enabling every compressor to be manufactured in full compliance with strict high-pressure production standards.

All air tanks are certified with national standard pressure vessel inspection qualifications, ensuring safety and reliability under continuous high-pressure working conditions. Up to now, Elily has served hundreds of industrial enterprises with stable and long-term high-pressure air supply demands.

FAQ

Q: Where is your factory located? Can we arrange factory tours or audits?

A: Our manufacturing plant is situated in Liaobu Town Industrial Park, Dongguan, Guangdong Province. The total site area reaches 20,000 sq.m., including 8,000 sq.m. of modern production workshops. We sincerely welcome clients to visit our factory in person, and remote video factory audits are also available upon request.

Q: What main industries do your products cater to?

A: Our nitrogen generators and supporting gas supply systems are extensively applied across sectors in need of nitrogen supply, including petrochemical, coal mining, metallurgy, tire production, pharmaceutical, food processing, aerospace, new energy, electronics, rubber and shipbuilding industries.

Q: How many automatic blow molding machines can one 22kW high-pressure compressor drive?

A: A single 22kW compressor can operate 2 to 3 standard blow molding machines. If higher air output is needed, multiple units can be connected in parallel to meet peak simultaneous air consumption.

Q: What warranty coverage do you offer?

A: Our standard warranty includes 1-year coverage for the entire machine and a 2-year warranty for the core main airend.
