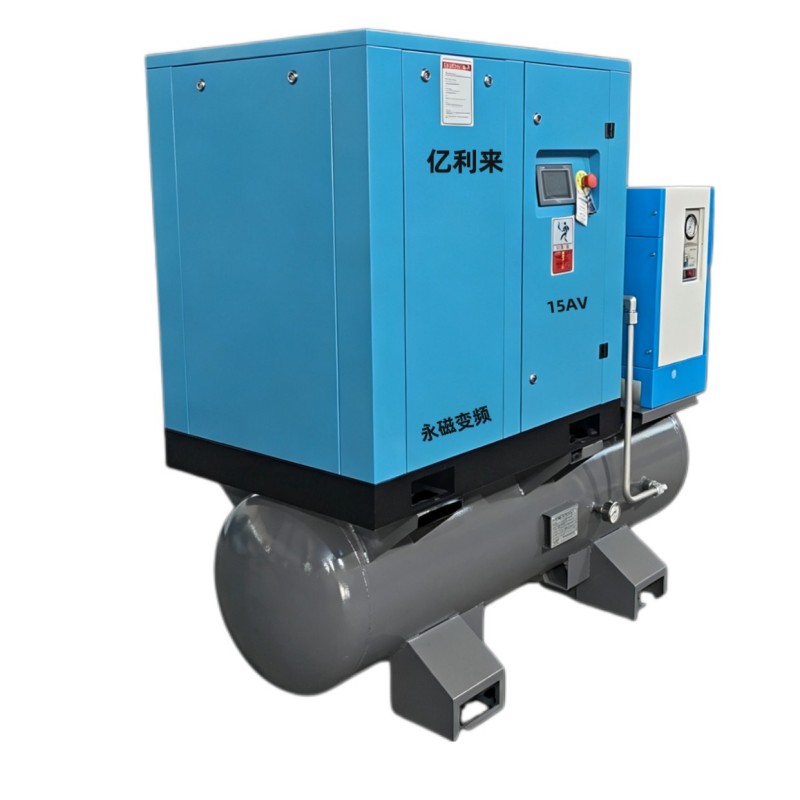

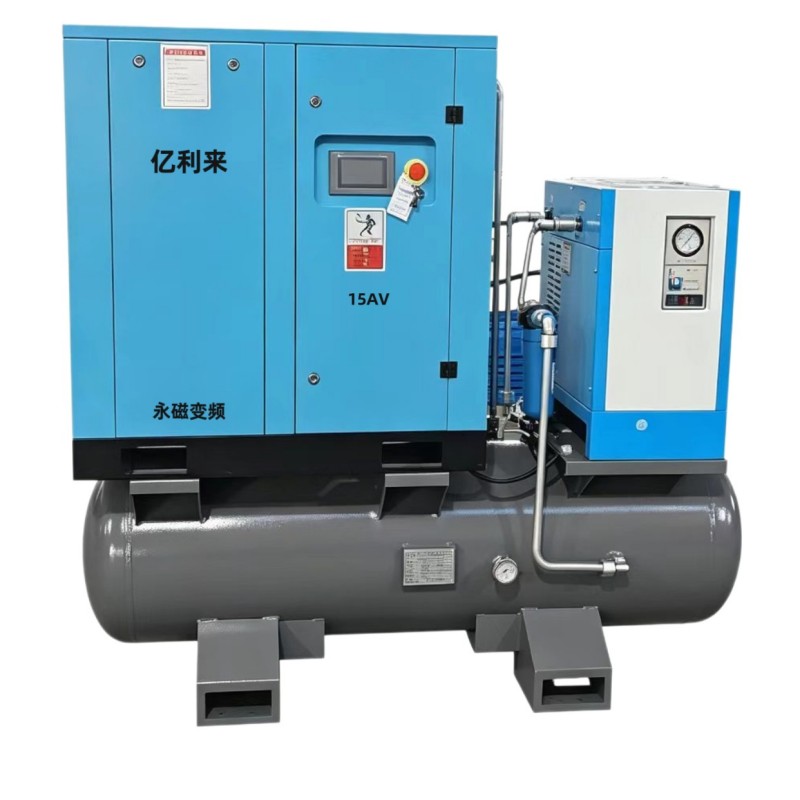

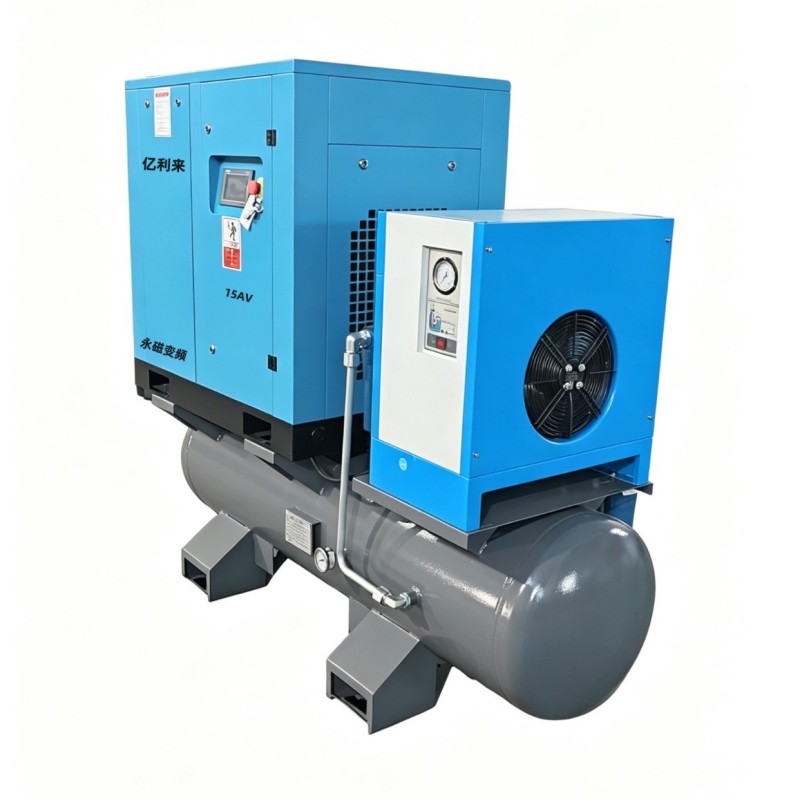

11kW 8 Bar 4 in 1 PM VSD Air Compressor

11kW 8 Bar 4-in-1 PM VSD Air Compressor – Core Features

Elily 11kW 8 Bar 4-in-1 PM VSD air compressor comes with integrated refrigerated dryer and precision filter modules. It delivers water-free and oil-free clean compressed air while cutting energy consumption by over 30%. Featuring plug-and-play design, the unit supports fast and hassle-free on-site operation.

I. Permanent Magnet VSD Power, Stable & Energy-Saving Output

Equipped with an 11kW IE4-grade permanent magnet variable frequency motor and direct-drive transmission structure, the unit ensures high-efficiency and stable operation. It provides a steady air displacement of 1.6 m³/min, with air pressure fluctuation controlled within ≤0.02 MPa. It is perfectly applicable for pneumatic tools, spray painting equipment, small punch presses and other common industrial devices.

II. Compact 4-in-1 Integrated Design, Space-Saving Layout

Different from traditional split air compressor systems, this integrated model reduces overall floor space by more than 30%. Built with an internal air receiver tank and refrigerated dryer, it eliminates complicated external piping connections and greatly lowers the risk of compressed air leakage during operation.

III. High-Efficiency Drying & Filtration, Pure Compressed Air Supply

The built-in refrigerated dryer offers an air processing capacity of 2.0 m³/min, maintaining a stable outlet pressure dew point below 3°C. Matched with a four-stage precision filtration system of 0.01 ppm accuracy, the output air residual oil content is controlled ≤0.001 mg/m³, fully protecting pneumatic valves, spray guns and precision industrial equipment.

IV. Strict Quality Control, Stable Long-Term Operation

Every Elily 11kW 8 Bar 4-in-1 PM VSD Air Compressor passes an 8-hour continuous aging test before delivery. This model has achieved stable operation exceeding 8,000 hours in numerous auto repair workshops and packaging factories. Practical customer data shows the failure rate is lower than 0.5%.

Product Specifications:

System Configuration

Large-Capacity Stainless Steel Air Dryer

● Full stainless steel construction (only internal heat exchange tubes are copper), anti-corrosion and long service life

● Upgraded large-flow design with maximum processing capacity of 2.4 m³/min

● Dual temperature and pressure intelligent control prevents icing during operation and maintains consistent drying performance

Superior Heat Dissipation System

● Equipped with thickened, oversized heat sinks and high-performance cooling fans for efficient heat dissipation

● Optimized airflow structure keeps the inverter operating at a stable low temperature, avoiding overheating damage and effectively extending service life

Internal Fittings — Easy Maintenance & Replacement

● High-standard high-pressure resistant tubing enables convenient routine maintenance and quick component replacement

● Higher durability and easier servicing compared with conventional iron pipelines, lowering long-term maintenance costs

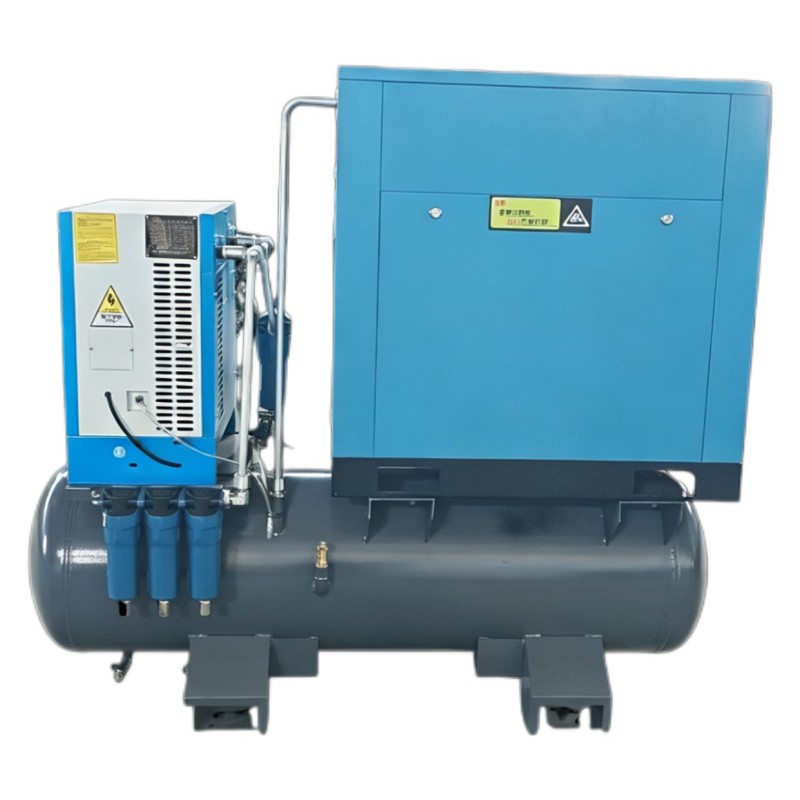

Ultra-High Precision 5-Stage Filtration System

● Expanded filtration capacity prolongs filter service cycle and reduces replacement frequency

● Built-in automatic drainage device continuously removes condensed water for stable operation

● Adopts 5-stage filtration structure with ultra-high precision up to 0.001 PPM, effectively eliminating moisture, oil mist and solid impurities

Application Scenarios

Rubber Industry: For vulcanizer mold release and pneumatic control. Stable 0.8MPa constant pressure, 30% energy saving and low noise of 63dB. Perfect for in-workshop layout as an ideal substitute for piston air compressors.

Packaging Industry: Drives strapping machines and sealing equipment. Plug-and-play integrated structure with optional filters. Air output reaches 1.2 m³/min, supporting simultaneous operation of 2 to 3 sets of equipment.

CNC Machining: Used for chip blowing, automatic tool changing and workpiece clamping. Air pressure fluctuation controlled within ±0.01 MPa. The 220V variant is well suited for small mold workshops.

Glass Industry: Matches glass edge grinders, drilling machines and cutting air blowing systems. PM VSD technology adjusts air output according to actual demand. Low noise allows installation beside processing equipment.

Ceramics Industry： Applicable to green body dust removal, glazing control and brick pressing auxiliary air supply. Built-in air receiver tank and high-efficiency filter system, reliably operating in dusty working conditions.

Woodworking & Furniture Manufacturing: Supplies air for pneumatic nailers, spray guns and carving chip blowing systems. Available in 220V plug-and-play type, quiet operation at 63dB, occupying only 0.53 m² floor space.

Printing & Dyeing Industry: Serves printing machines, folding machines and embossing equipment. Delivers consistent compressed air. Optional refrigerated dryer provides dry air free of moisture.

Thermoforming Equipment: Ideal for positive-pressure mold release and air blowing. Integrated air receiver tank satisfies peak instantaneous air demand. The 220V model is a great choice for small and medium thermoforming factories.

Material Handling & Central Vacuum Systems: Used for pneumatic conveying, material cleaning and centralized air supply. Integrated design simplifies installation. Optional dryers and precision filters can be configured upon request.

Company Profile

Elily owns an experienced engineering R&D team dedicated to innovative air compressor technology, providing strong technical support for global customers. Our product portfolio covers fixed-speed, permanent magnet VSD, two-stage compression PM VSD, low-pressure and mobile screw air compressors, blowers and vacuum pumps. All permanent magnet VSD compressors have passed National Level 1 Energy Efficiency Certification.

Our standardized production base is located in Liaobu Town, Dongguan, Guangdong, covering over 20,000 ㎡. We are equipped with advanced production and testing machinery, and our production staff receive strict professional training.

Premium core components are adopted for all units: Taiwan Hanbell airends, Class 1 high-efficiency permanent magnet VSD motors and Zoncn inverters. Auxiliary spare parts are purchased from top domestic energy-saving brands.

We operate a complete pre-sales, in-sales and after-sales service system. Our professional team provides customized non-standard solutions to meet diverse client demands worldwide.

Partners

FAQ：

Q: How much higher airflow can the 11kW unit deliver compared with the 7.5kW model?

A: The air output is around 60% higher, capable of driving an extra 2 to 3 pneumatic devices simultaneously.

Q: Is 24-hour continuous operation supported?

A: Yes. The permanent magnet VSD motor is designed for long-duration continuous running with reliable temperature control.

Q: What is the recommended oil replacement cycle?

A: Lubricating oil should be replaced every 2,000 working hours.

Q: Can you supply English catalogs and technical documents?

A: Yes. We offer digital English catalogs, technical data sheets, dimension drawings and certification files upon request.

Q: Can I mix different models within one order?

A: Yes. Orders can combine multiple power specifications and configurations. MOQ will be calculated based on the total quantity of the whole shipment.

Q: Are CE and ISO certifications available?

A: All units are CE certified and manufactured in accordance with ISO 9001 quality system. Scanned original certificates can be provided for customs clearance.

Q:  What’s the official warranty policy?

A: The whole machine enjoys a 1-year warranty. Core components including airend, permanent magnet motor and inverter are covered under a 2-year warranty.

Q: What packaging do you use for export shipments?

A: Export-grade fumigation-free wooden crates with shock-absorbing padding and reinforced corners, suitable for long-distance sea transportation.

Q: What trade terms can you accept?

A: We support EXW, FOB Shenzhen/Guangzhou and CIF destination port. We can also cooperate with customer-designated freight forwarders.

Q: Is remote technical support available for overseas buyers?

A: Yes. Our engineers provide remote video guidance for installation, commissioning, troubleshooting and parameter adjustment via WhatsApp, and email.
