Industrial PSA Nitrogen Plant: Onsite Nitrogen Generation for Modern Manufacturing

For manufacturers that require a stable and continuous nitrogen supply, producing nitrogen directly at the point of use can be an efficient alternative to relying on delivered nitrogen cylinders or liquid nitrogen.

A PSA nitrogen plant uses Pressure Swing Adsorption technology to separate nitrogen from compressed air and produce nitrogen continuously according to the requirements of the application. Depending on the project, the system can be configured with air treatment equipment, a PSA nitrogen generator, storage tanks and other auxiliary equipment to provide a complete nitrogen generation solution.

For industrial users, the system can be designed according to the required nitrogen flow, purity, pressure and actual operating conditions.

What Is a PSA Nitrogen Plant?

A PSA nitrogen plant is an on-site nitrogen production system based on Pressure Swing Adsorption technology.

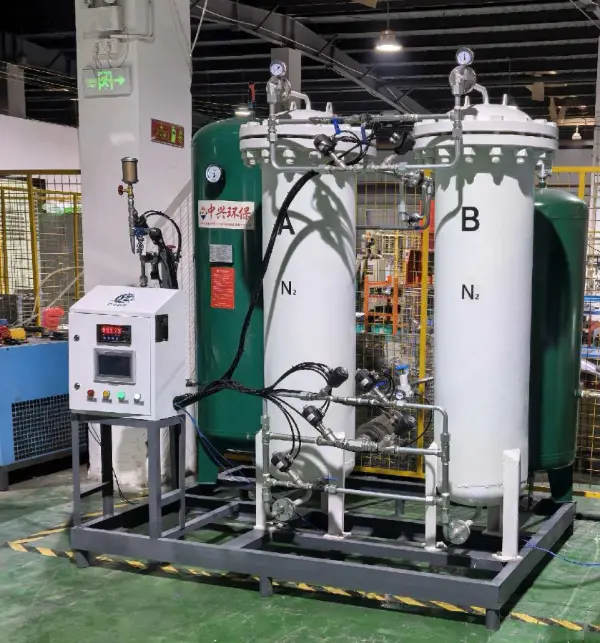

Compressed air first passes through the required air treatment equipment to remove moisture, oil and other contaminants. The treated compressed air then enters the PSA adsorption towers containing Carbon Molecular Sieve (CMS).

Through alternating adsorption and regeneration cycles, oxygen and other components are separated from the compressed air, allowing nitrogen to be continuously produced for industrial use.

Depending on the customer's requirements, a complete system may include:

· Air compressor

· Air receiver tank

· Air dryer

· Precision filters

· PSA nitrogen generator

· Nitrogen buffer tank

· Nitrogen booster compressor

· PLC control system

This allows the nitrogen plant to be configured as a complete solution rather than simply supplying an individual nitrogen generator.

Why Use an Onsite PSA Nitrogen Generator?

An onsite PSA nitrogen generator allows a factory to produce nitrogen directly where it is consumed.

Instead of depending entirely on regular deliveries of nitrogen cylinders or liquid nitrogen, users can generate nitrogen from compressed air whenever the production process requires it.

For many industrial applications, onsite nitrogen generation can offer several practical advantages:

Continuous Nitrogen Supply

Nitrogen can be generated continuously during production, reducing dependence on external nitrogen deliveries.

Nitrogen Produced According to Demand

The system can be selected according to the required nitrogen flow rate, purity and pressure.

Convenient Factory Operation

Once properly installed and commissioned, the system provides an automatic source of nitrogen for the production line.

Reduced Nitrogen Handling

Onsite generation can reduce the handling, storage and replacement work associated with large quantities of nitrogen cylinders.

Integrated System Design

Air treatment, nitrogen generation, storage and pressure boosting can be integrated according to the customer's process requirements.

For factories with continuous or regular nitrogen consumption, an onsite system can therefore provide a practical long-term nitrogen supply solution.

Industrial PSA Nitrogen Generator for Different Applications

An industrial PSA nitrogen generator can be configured for different manufacturing processes by adjusting nitrogen capacity, purity, outlet pressure and system configuration.

Typical applications include:

Laser Cutting

Nitrogen can be used as an assist gas for laser cutting applications where the process requires a clean cutting environment and suitable nitrogen pressure.

Laser Welding

A stable nitrogen supply can also support certain laser welding and metal-processing applications.

Food Packaging

Nitrogen is widely used in modified-atmosphere packaging and other food-processing applications where an inert gas atmosphere is required.

Electronics Manufacturing

Nitrogen can provide a controlled atmosphere for various electronics manufacturing and processing operations.

Chemical and Process Industries

Nitrogen can be used for purging, blanketing and inerting where reducing contact with oxygen is required.

Metal Processing and Heat Treatment

Industrial nitrogen generation systems can also support controlled-atmosphere processes in metal manufacturing and heat-treatment applications.

The correct system configuration depends on the actual process rather than using the same nitrogen generator for every application.

A PSA Nitrogen Plant Can Be Customized for Your Project

Different factories have different nitrogen requirements. Therefore, the capacity and configuration of a PSA nitrogen system should be determined according to the customer's actual application.

Before recommending a system, the following information is especially important:

Required nitrogen flow: ___ Nm³/h

Required nitrogen purity: ___ %

Required outlet pressure: ___

bar Required dew point: ___ °C

Application: __________

Local power supply: __________

Based on this information, the PSA nitrogen generator and its auxiliary equipment can be configured for the project.

For example, a customer requiring higher nitrogen pressure may need a nitrogen booster compressor after the PSA generator. A customer looking for a compact solution may prefer an integrated or skid-mounted design.

The objective is not simply to supply a machine, but to provide a nitrogen generation system that matches the actual production requirement.

From Compressed Air to Onsite Nitrogen

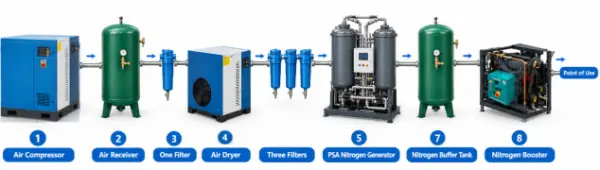

A typical industrial nitrogen generation process can be arranged as:

Air Compressor → Air Receiver → Air Dryer → Filters → PSA Nitrogen Generator → Nitrogen Buffer Tank → Nitrogen Booster (if required) → Point of Use

This configuration can be adjusted depending on the required nitrogen quality and application.

For projects where installation space is limited, several components can also be integrated into a compact system to simplify installation and operation.

Why Choose an Onsite Industrial Nitrogen Solution?

Choosing the right nitrogen generation system is not only about nitrogen purity.

A practical system should also consider:

· Required nitrogen consumption

· Operating hours

· Outlet pressure

· Air quality

· Installation environment

· Available space

· Energy consumption

· Maintenance requirements

· Future production demand

By considering these factors before system configuration, an onsite PSA nitrogen generator can be better matched to the customer's production process.

Whether the requirement is for an individual industrial PSA nitrogen generator or a complete PSA nitrogen plant, the system should ultimately be designed around the customer's actual nitrogen demand.

Request a PSA Nitrogen Plant Solution

Looking for a reliable onsite nitrogen supply for your factory?

Tell us your required nitrogen flow, purity, pressure and application, and we can recommend a suitable PSA nitrogen generation system and auxiliary equipment for your project.

Whether you need a compact nitrogen generator or a complete industrial nitrogen plant, the system can be configured according to your operating requirements.

Contact us for a quotation and customized PSA nitrogen solution.

FAQ

What is a PSA nitrogen plant?

A PSA nitrogen plant is a nitrogen generation system that uses Pressure Swing Adsorption technology to separate nitrogen from compressed air and produce nitrogen onsite.

What is an onsite PSA nitrogen generator?

An onsite PSA nitrogen generator produces nitrogen directly at the user's facility, allowing nitrogen to be supplied to the production process without relying entirely on externally delivered nitrogen.

Can an industrial PSA nitrogen generator be customized?

Yes. System capacity and configuration can be selected according to requirements.
