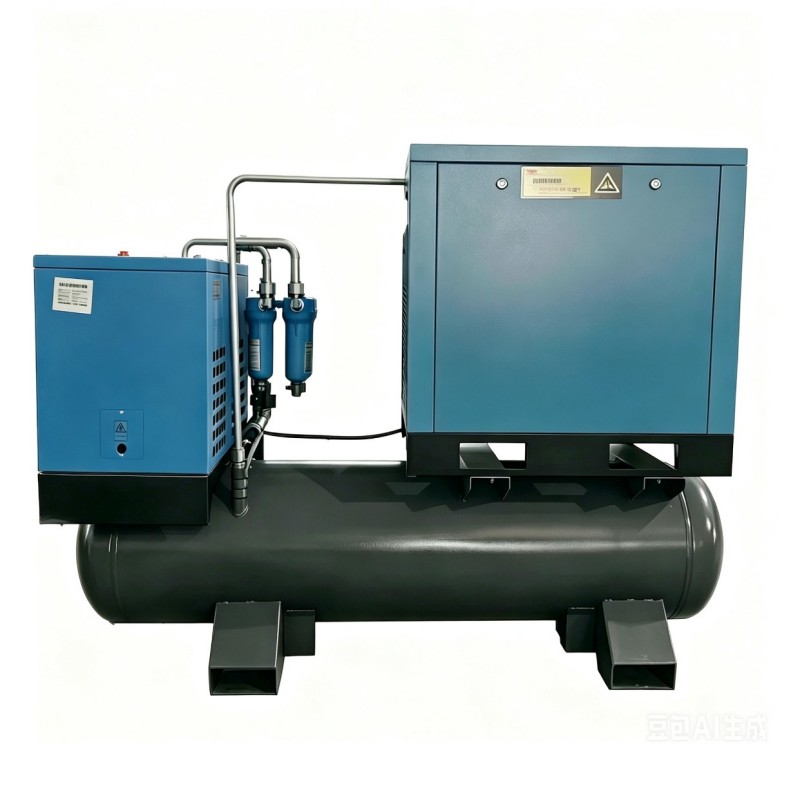

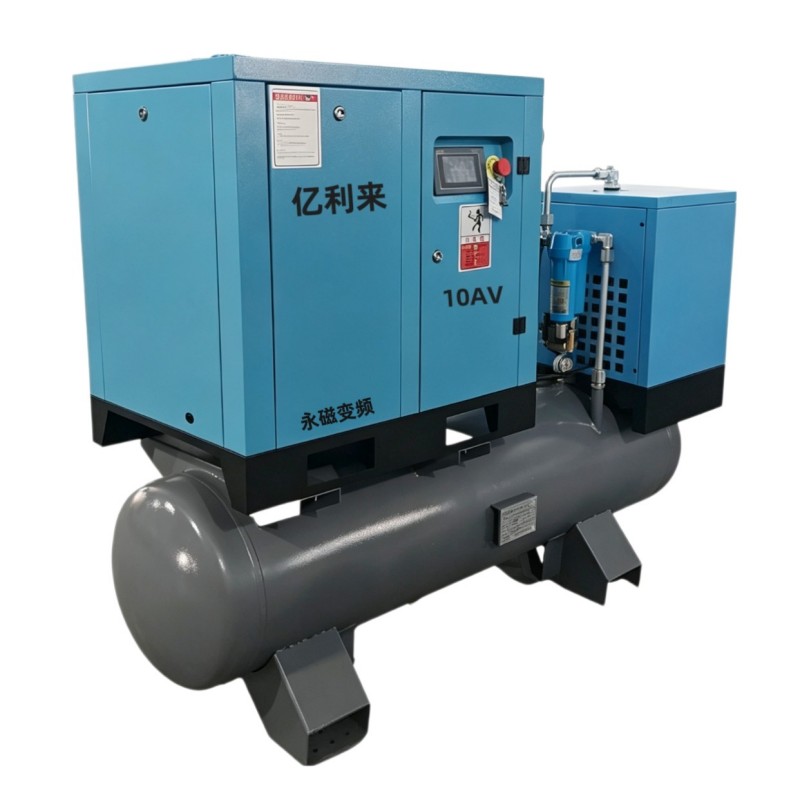

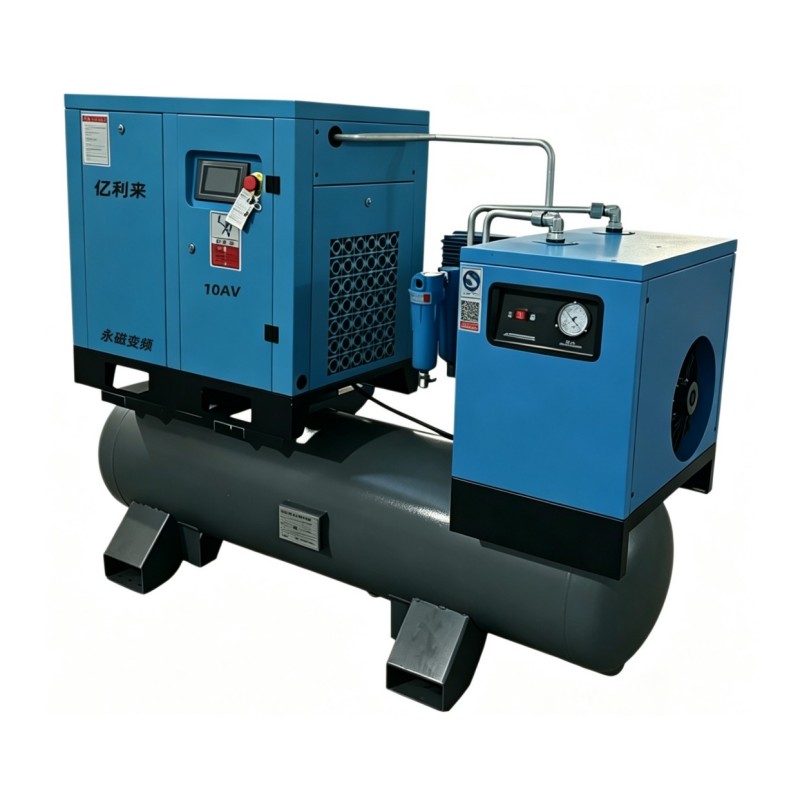

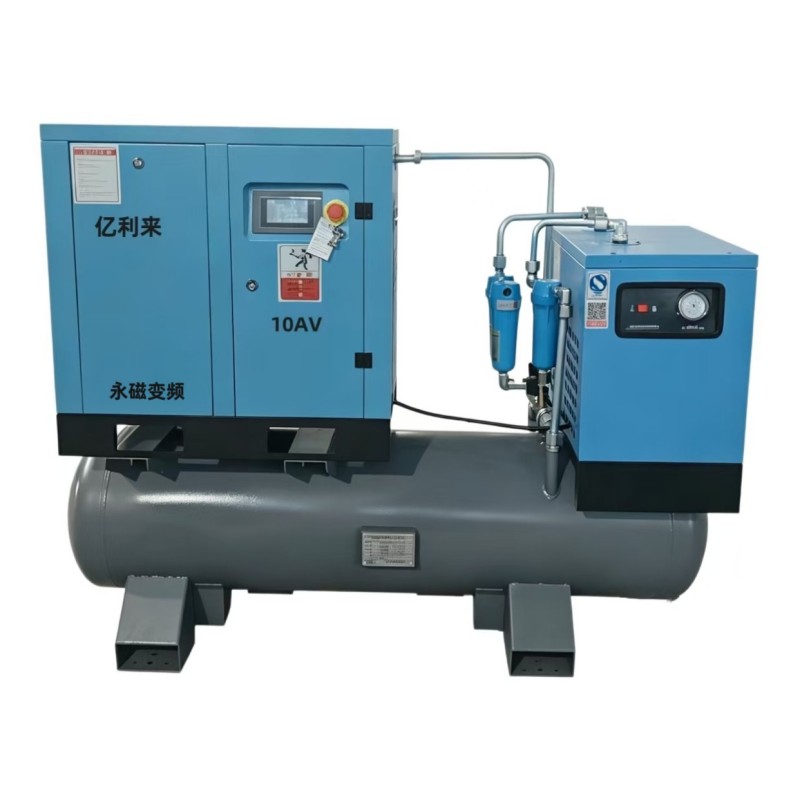

7.5kW 8 Bar 4 in 1 PM VSD Air Compressor

Key selling points

I: High-Efficiency Permanent Magnet VSD Technology — Smooth & Low-Noise Operation

Powered by a 7.5kW permanent magnet VSD motor with direct-drive construction to cut transmission energy loss. It provides stable 0.8MPa pressure and 1.0 m³/min airflow, satisfying continuous air demand for light industrial scenarios.

The running noise is only 62 ± 3 dB. Supported by premium air-cooled thermal control, the unit avoids overheating even under long-term continuous operation.

II: 4-in-1 Integrated Design — Space Saving & Simplified Piping

This all-in-one unit comes with built-in air receiver tank and refrigerated dryer, requiring no external air treatment equipment. Compact size makes it perfect for narrow workshops, laboratories and mobile working sites. Realize plug-and-play operation and greatly lower installation expenses.

III: Refrigerated Dryer & Precision Filtration — Clean, Oil-Free & Dry Compressed Air

Equipped with a 1.6 m³/min refrigerated dryer for efficient moisture removal. Matched with a 4-stage filtration system up to 0.01 ppm precision, it fully eliminates oil pollutants and solid particles to safeguard pneumatic tools and precision instruments.

IV: Strict Factory Testing — Outstanding Durability & Reliability

Each 7.5kW 8 Bar 4-in-1 PM VSD air compressor passes multi-item factory tests covering pressure holding, air tightness, vibration and temperature rise before shipment.

It adopts a 10L large-capacity lubricant tank to extend maintenance cycles. This model has accumulated more than 5,000 hours of stable operation in small processing factories, advertising engraving workshops and laboratories, fully verifying its reliable performance.

Product Specifications:

System Configuration

Large-Capacity Stainless Steel Air Dryer

● Full stainless steel main structure, only internal heat exchange tubes adopt copper material for outstanding corrosion resistance

● Upgraded large-flow design with maximum processing capacity of 2.4 m³/min

● Dual temperature and pressure intelligent control prevents icing during operation and maintains stable, consistent drying performance

Superior Heat Dissipation System

● Equipped with thickened, oversized heat sinks and high-efficiency cooling fans for efficient heat dissipation

● Optimized airflow layout keeps the inverter operating at low stable temperatures, preventing overheating aging and prolonging service life

Internal Fittings — Easy Maintenance & Replacement

● Adopts high-standard high-pressure tubing for convenient daily maintenance and quick component replacement

● Higher durability and easier servicing than conventional iron pipelines, cutting long-term maintenance costs

Ultra-High Precision 5-Stage Filtration System

● Expanded filtration capacity extends service life and reduces replacement frequency

● Built-in automatic drainage removes condensed water continuously for stable operation

● Adopts 5-stage filtration structure with ultra-high precision up to 0.001 PPM to eliminate moisture, oil mist and particulate impurities effectively

Application Scenarios

The 7.5kW 8 Bar 4-in-1 PM VSD Air Compressor serves a wide range of industries, including rubber, packaging, plastics, CNC machining, glass processing, ceramics, leather processing, woodworking & furniture manufacturing, electronics, central vacuum systems, material handling, and printing & dyeing.

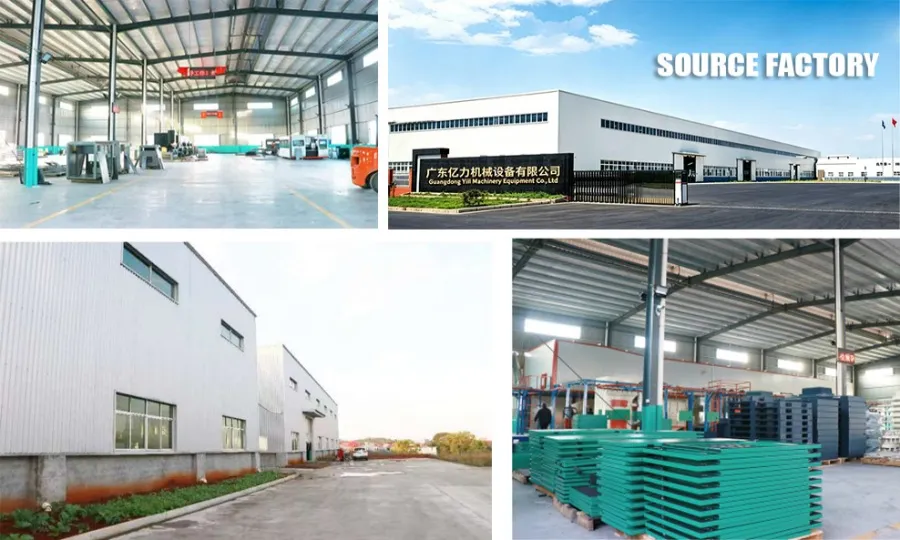

Company Capabilities

Founded in 2010, Elily is among the limited domestic brands that can deliver customized high-pressure screw air compressors. We own exclusive test benches for high-pressure airends and a laboratory supporting 1.5-times pressure burst testing. All high-pressure models pass strict durability verification tests running more than 1,000 hours.

Specialized assembly and inspection production lines are available for our 2-in-1 integrated high-pressure compressor series. Every unit undergoes a pressure holding test at 1.3 times the rated pressure and a 4-hour full-load temperature rise test before shipment. Our air receiver tanks are nationally certified pressure vessels, engineered to endure 1.5 times maximum working pressure, with official inspection documents supplied.

We have delivered tailored compressed air solutions to more than 300 domestic and global high-pressure air users, covering bottle blowing, glass production, laser processing, pressure testing and other industries. Tuning the pressure switch is far from sufficient for reliable high-pressure compressor manufacturing. We thoroughly study every working condition and strictly control all critical safety factors for stable and secure operation.

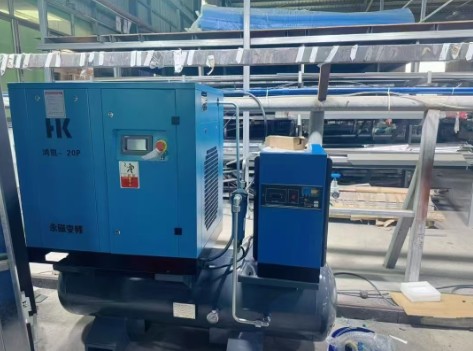

Actual Customer Photos

Partners

FAQ

Q: How many pneumatic devices can a 7.5kW unit power?

A: It can drive 2–3 small pneumatic tools or one laser engraving machine at the same time.

Q: Is an independent air dryer required for additional purchase?

A: No extra air dryer is needed. A refrigerated dryer is integrated inside the machine.

Q: What about the noise level during operation?

A: The running noise is only 62 dB, over 30% quieter than ordinary air compressors.

Q: Can you provide OEM or OBM customization service?

A: Yes, various customization options are supported.

Q: What is your MOQ?

A: The MOQ is 1 unit for standard models. For OEM orders, the MOQ ranges from 5 to 10 units subject to specific customization requirements.

Q: Can we arrange third-party factory audit or pre-shipment inspection?

A: Certainly. We accept third-party inspection organizations including SGS, BV, TÜV to carry out factory audits or on-site product inspection before delivery.

Q: What warranty terms are offered?

A: The whole machine enjoys a 1-year warranty. Core components including airend, permanent magnet motor and inverter are covered by a 2-year warranty.

Q: What packaging is adopted for export?

A: Export-grade fumigation-free wooden cases with shock-absorbing materials, suitable for long-distance sea transportation.

Q: Can you supply complete export documents and certificates?

A: Yes. We provide commercial invoice, packing list, certificate of origin, CE, ISO and other documents to support customs clearance.
