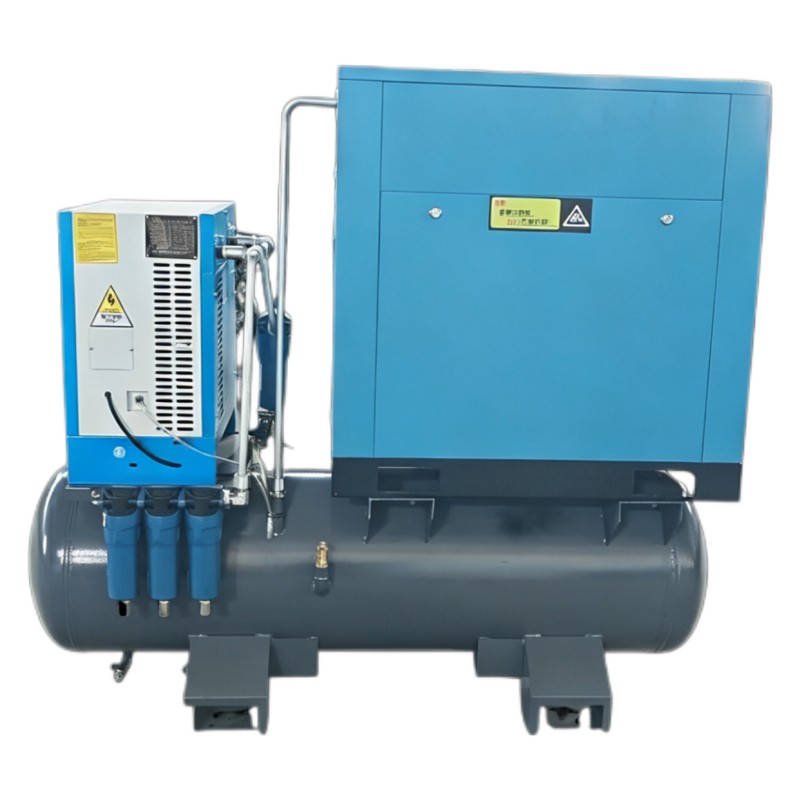

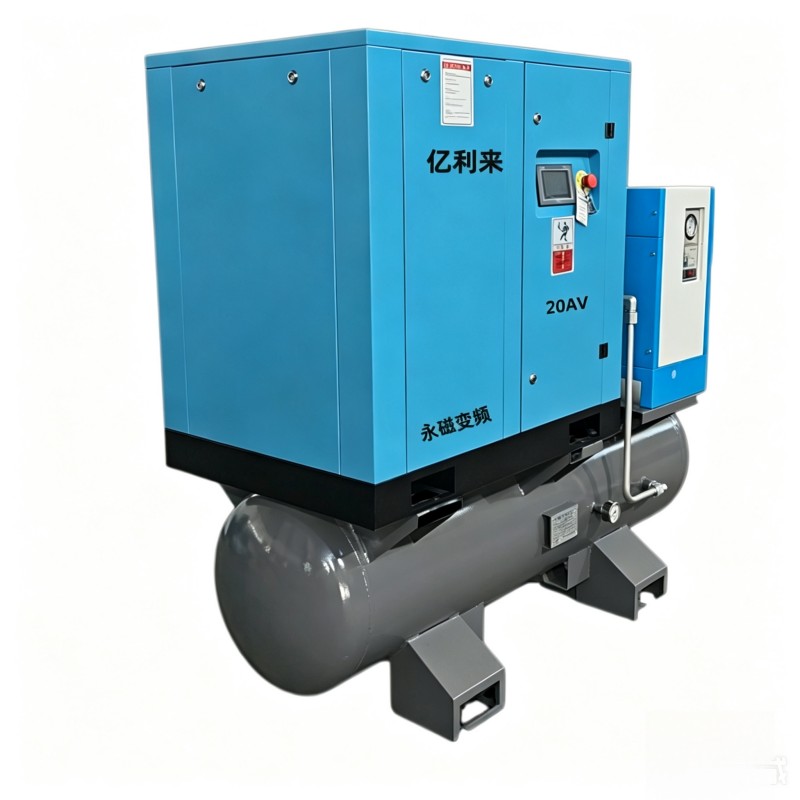

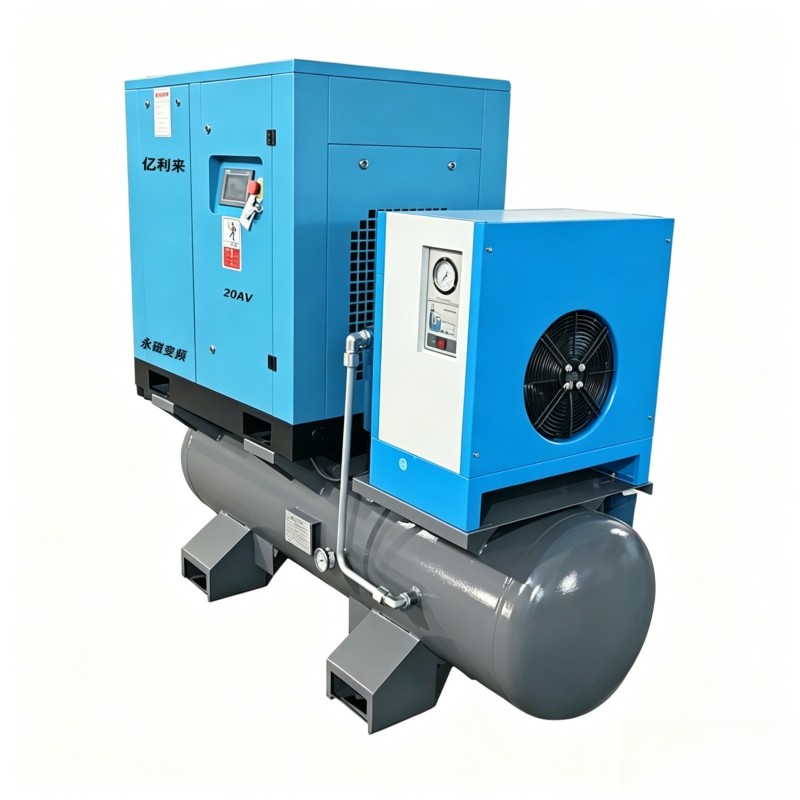

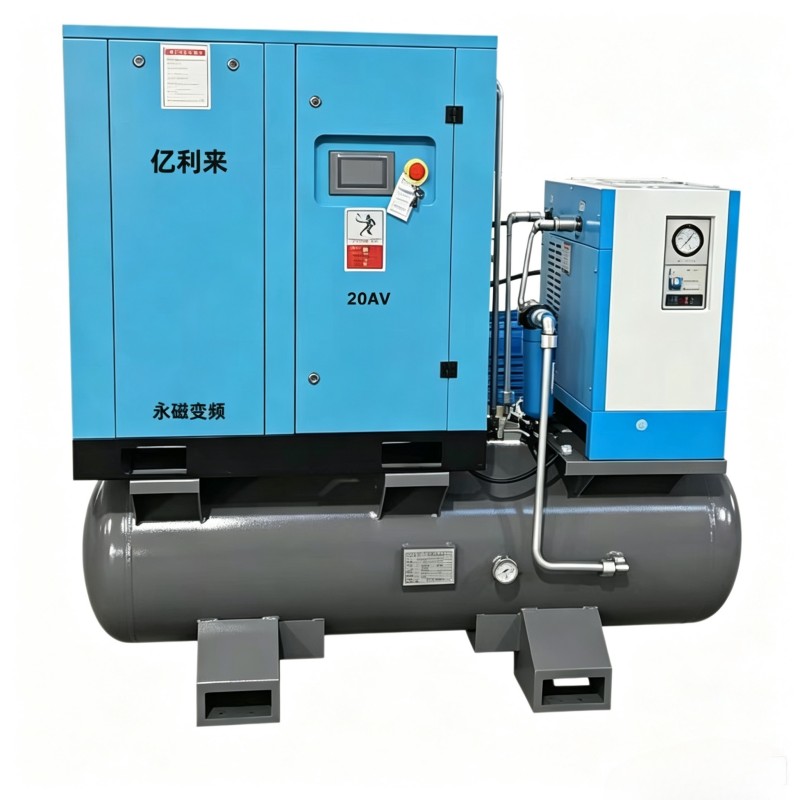

15kW 8 Bar 4 in 1 PM VSD Air Compressor

15kW 8 Bar 4-in-1 PM VSD Air Compressor – Core Advantages

Elily 15kW 8 Bar 4-in-1 PM VSD air compressor integrates high-precision air purification, outstanding energy-saving performance and plug-and-play convenience. It provides stable, ultra-clean compressed air while greatly reducing energy consumption and operational difficulty for medium-sized industrial workshops.

I. High-Efficiency PM VSD Drive, Stable and Sufficient Air Output

Powered by a 15kW high-performance permanent magnet variable frequency motor, the unit delivers a steady air displacement of 2.2 m³/min under 0.8 MPa working pressure. Adopting high-efficiency direct-drive transmission structure, the overall transmission efficiency reaches up to 96%.

Verified by actual industrial operation, this PM VSD compressor achieves 25%–35% energy savings compared with traditional fixed-speed models. It can save over 10,000 RMB in annual electricity costs, bringing long-term and considerable economic benefits for factory operation.

II. Complete 4-in-1 Integrated Design, Easy Installation & Maintenance

This all-in-one machine integrates air compression, air storage buffer, refrigerated drying and multi-stage precision filtration into one compact unit. No external air treatment auxiliary equipment is required.

Simply connect power supply and air pipelines to complete deployment and start operation. It realizes true plug-and-play use, greatly simplifying installation procedures and daily maintenance work, perfectly adapting to fast-paced production line layout requirements.

III. Oversized Dryer + 4-Stage Filtration, Food-Grade Ultra-Clean Air

Equipped with a high-capacity 2.8 m³/min refrigerated dryer, the system stably controls outlet air dew point as low as 2°C to eliminate moisture effectively.

The professional four-stage filtration system covers air-water separation, oil mist filtration, trace oil adsorption and fine dust removal, reaching a filtration precision of 0.01 ppm. The purified compressed air fully meets strict air quality standards for food processing, pharmaceutical production and precision spraying industries.

Product Specifications:

System Configuration

Large-Capacity Stainless Steel Air Dryer

● Adopts full stainless steel construction, with only internal heat exchange tubes made of copper, ensuring corrosion resistance and long service life

● Upgraded large flow design supports maximum air processing capacity of 2.4 m³/min, fully matching the unit’s air output demand

● Equipped with dual temperature and pressure intelligent control system, preventing internal icing during operation and maintaining consistent, excellent drying performance

Superior Heat Dissipation System

● Fitted with thickened oversized heat sinks and high-power cooling fans for efficient and rapid heat dissipation

● Optimized airflow structure keeps the inverter and core components operating at a low and stable temperature, avoiding overheating aging and significantly prolonging equipment service life

Internal Fittings — Easy Maintenance & Replacement

● Adopts high-standard high-pressure resistant tubing, enabling quick disassembly, convenient daily maintenance and effortless part replacement

● Outperforms conventional iron pipelines in durability, pressure resistance and operational flexibility, effectively lowering long-term maintenance costs

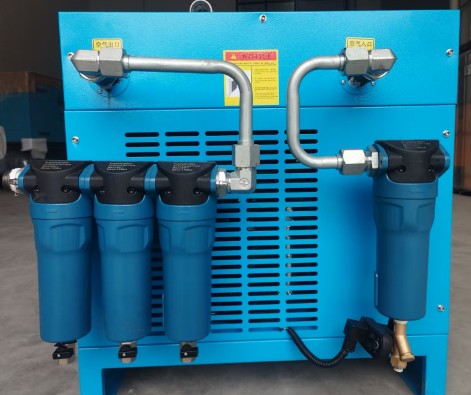

Ultra-High Precision 5-Stage Filtration System

● Adopts enlarged filtration structure with larger processing capacity, effectively extending filter service life and reducing replacement frequency

● Equipped with automatic drainage function to discharge condensed water in real time, ensuring stable and uninterrupted equipment operation

● Professional 5-stage ultra-precision filtration design achieves a high filtration accuracy of 0.001 PPM, thoroughly removing water, oil and impurities to deliver ultra-clean compressed air

FAQ：

Q: How many laser cutting machines can this 15kW compressor support?

A: It can drive one low-power laser cutter (below 1000W), or multiple sets of separate pneumatic equipment simultaneously.

Q: What is the residual oil content of the output compressed air?

A: Residual oil content ≤0.001 mg/m³, exceeding ISO 8573-1 Class 1 air quality standard.

Q: Do you have overseas warehouses or local service centers?

A: All goods are shipped directly from our factory in China. Consolidated shipment solutions are available for Southeast Asia and the Middle East subject to order quantity. Please contact our sales team to check local partner warehouse resources.

Q: What is your after-sales response speed?

A: We reply to after-sales inquiries within 2 hours. On-site service is available within 48 hours for domestic major industrial cities. Remote technical support will be arranged within 24 hours for overseas clients.

Q: Are sample orders acceptable?

A: Yes. Single-unit sample orders are supported for testing. Sample price follows standard factory rate, and samples enjoy full official warranty coverage.

Q: Can you provide OEM & OBM customization services?

A: Yes. We offer OEM customization including machine color, nameplates, logos, packaging and manuals. Full OBM brand customization is also available upon demand.

Q: What is your MOQ?

A: MOQ is 1 unit for standard models. For OEM customized orders, MOQ ranges from 5 to 10 units based on specific customization demands.

Q: What warranty terms are provided?

A: The whole machine enjoys a 1-year warranty. Core components including permanent magnet motor, airend and inverter are covered by a 2-year warranty.

Q: Does this unit adopt plug-and-play integrated design?

A: Yes. The built-in air tank, refrigerated dryer and filter form a complete system. Simply connect power and pipelines to start operation without extra air treatment equipment.

Q: Which industries is this compressor suitable for?

A: Widely used in mechanical processing, low-pressure laser cutting, food packaging, electronics, spraying and other medium-sized workshop production scenarios.
